We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

portable clean room construction vertical laminar flow booth for sterile food and drug production 1
portable clean room construction vertical laminar flow booth for sterile food and drug production 2
portable clean room construction vertical laminar flow booth for sterile food and drug production 3
portable clean room construction vertical laminar flow booth for sterile food and drug production 1
portable clean room construction vertical laminar flow booth for sterile food and drug production 2
portable clean room construction vertical laminar flow booth for sterile food and drug production 3

portable clean room construction vertical laminar flow booth for sterile food and drug production

Brand:
HAOAIRTECH
Model number:
HA-HMR
Material:
Steel With Powder Coated
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
MOQ
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight against with document
Application:
Microcomputer electronic cleanroom
Inquiry
Product Name
Cleanroom Clean Shed
Other Name
clean shed
Guarantee Time
12 months
Purificaiton Rank
ISO6
Dimension
3500X3000X2590mm
Power Supplier
220V/50 or 60HZ

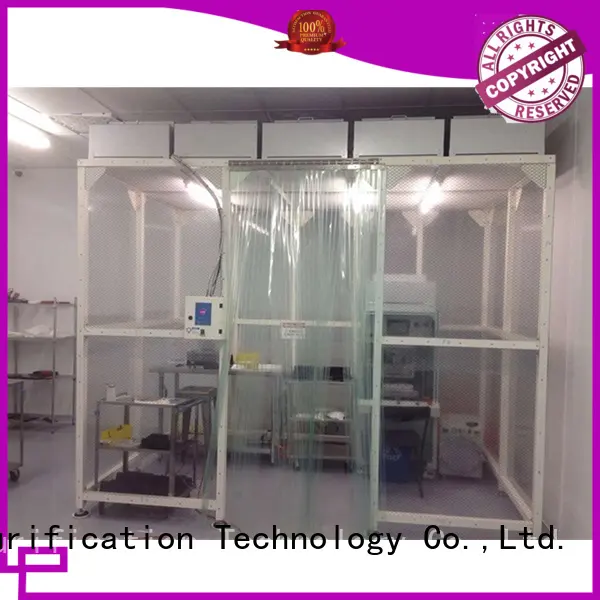

Class100 Clean Shed For Cleanroom


portable clean room construction vertical laminar flow booth for sterile food and drug production 4

Introduction:


            A Clean shed rooom  or clean room is an environment,

 typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors.

 More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size.

 To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter,

 corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.

For clean room doors, we have many styles, this product uses stainless steel door.

The open way we have automatic sensing and manual door opening.

Stainless steel doors are highly resistant to corrosion and abrasion.

 It is a particularly popular material.

Technical Paremeters:

MODELHA-LFB2000HA-LFB3000HA-LFB4000HA-LFB5000

Ex size (mm)

(W*D*H)

2000X2000X25963000X3000X25964000X4000X25965000X5000X2596
In size (mm)1900x1900x22052900x2900x22053900x3900x22054900x4900x2205
Purification rankClass100-300,000(FS209E USA)
HEPA filterEfficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filterEfficiency : 85% @ 5um
Control systemPC control system / promised speed by control box
Pressure GaugeAmerican Dywer pressure
Noise<50-55 dB (test point distance is 1m)

Air velocity(m3/h)

0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame materialstainless steel/steel with power coated/Cast aluminum profile
Wall frameTempered glass / PVC anti-static curtain (option)
FanEBM Fan /Taiwan fan/ Domestic fan (option)
Power supplerAC110/220v 50HZ/60HZ

Customer's design is avaliable!


Feature:

 Standard product

• FFU : galvanized case;smooth surface finish and rust-free
• HEPA filter : HEPA filters comply with EN 1822;efficency is available from H13 to U17
• Frame : frames are made of sus stainless steel square pipe.they are good looking and anti-corrosive
• Buliding envelope : wall is made of anti-static,soft PVC or acrylic
• Control box : control box is controlled by computer programs.parameters are easy to be adjusted.

Alternative configuration

• Pressure difference control device;
• Pass box;
• Air shower pass box;
• ULPA filter;
• Sticky mat;
• Air shower;
• Transparent/grid pvc curtain;
• Clean bench;
• Thermo-static and humid -static air conditiong system
