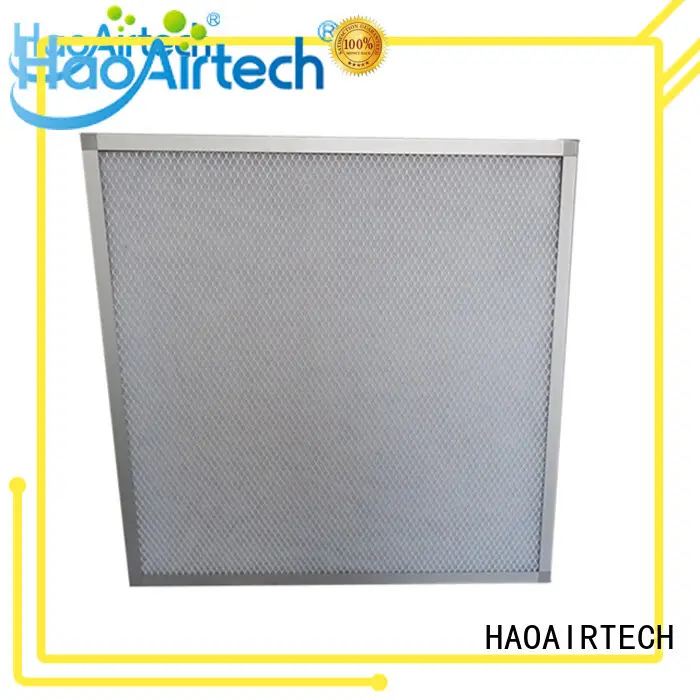

panel air filter online HAOAIRTECH

Company Advantages
1. The design is essential for HAOAIRTECH panel filters uk and we have highly qualified designers with rich expertise in designing this kind of product. The product can be used to save time for cleaning and vacuuming
2. By using this product, people can increase the comfort of living or working in many cases, enhancing the overall quality of life or work. The product stands out for its high efficiency for purification
3. The product will not be delivered until it is assured to be pf the high quality. The product is widely used for high-end clean rooms of various manufacturers
4. The product is of top quality and has reliable performance at competitive prices. A sample of the product can be offered for the confirmation of quality
5. HAOAIRTECH offers this product with various practical functions. With the shell galvanized, the product is crack-resistant and wear-resistant

Media	Synthetic fibre
Frame	AL   frame
Gasket	/
screen	metal screen in both side
Frame thickness (mm)	10/17
Efficiency	G1,G2,G3,G4
Humidity	100%
Max Temperature	80℃



Dimension	Rate air flow	Media area	Dust   Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x10	2500	0.37	50	<30	100-200	G2
			60	<40	100-200	G3
			75	<45	150-200	G4
592x287x10	1200	0.19	25	<30	100-200	G2
			30	<40	100-200	G3
			40	<45	150-200	G4
592x592x21	2500	0.37	40	<30	100-200	G2
			75	<40	100-200	G3
			95	<45	150-200	G4
592x287x21	1200	0.19	20	<30	100-200	G2
			40	<40	100-200	G3
			50	<45	150-200	G4

Customer size is available



          It is used in ventilation and air conditioning systems of office buildings, conference rooms, hospitals, gymnasiums, airports and other large civil buildings, and centralized ventilation systems per

filtration of industrial buildings. large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device and so on.

Company Features
1. Our factory boasts a series of advanced and sophisticated facilities. They operate smoothly under systematic management. This enables us to constantly manufacture high-quality products.
2. In order to be socially responsible, we have made a plan for energy conservation and emission reduction and we will continue to carry out the plan all the time. So far, we have achieved progress in emission reduction during our production. Get more info!
