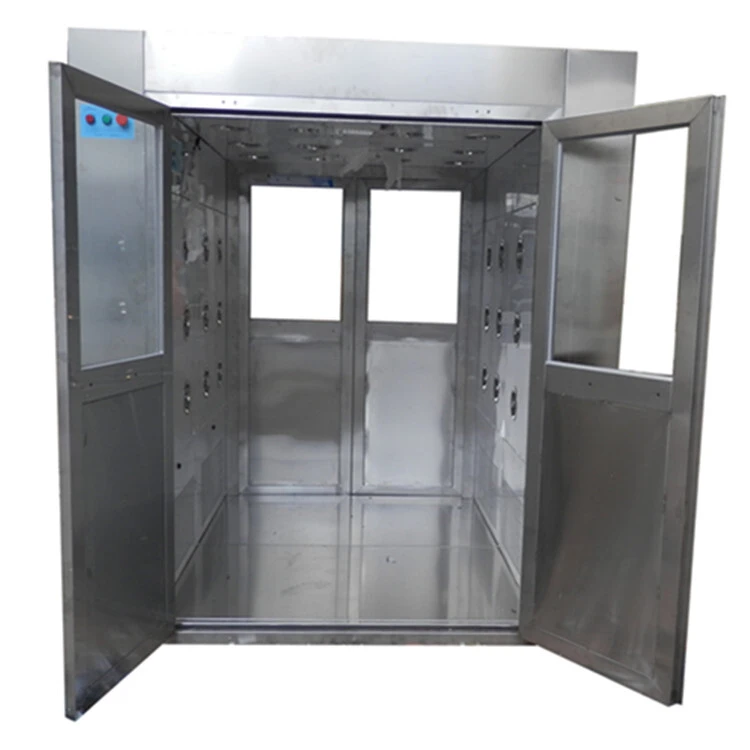

Modular standard cleanroom air shower KEL-AS1300-P1
Modular standard cleanroom air shower KEL-AS1300-P1
Introduction:
Modular cleanroom air showers are enclosed chambers placed at the entry and exit points of a cleanroom or other controlled environment. Using high-velocity jets of air and HEPA or ULPA air filter systems, cleanroom air showers remove loose contaminants from people and products before they enter the cleanroom, reducing or eliminating product defects for increased yields.
Specification:
| Model | KEL-AS1300-P1 |
| External size(mm) | 1300x1000x2200 |
| Internal size(mm) | 800x930x2000 |
| Bactericidal efficiency | 98% (Disinfectant liquid) |
| HEPA filter efficiency | 99.999%@0.3um |
| SUS nozzle and spary port | 12pcs |
| Blower way | 2 directional blow |
| Air speed | >22m/s |
| Power | 380V/50HZ, 380V/60HZ |
| Persons per cycle | 1 person |
| Air shower Duration | 12 second (adjustable) |
| Material | 1: Entirety Sus304.(T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
| Fan consumption | 0.75KWX1 set |
| Air flow of fan(m3/h) | 1300m3/h |
| Customer’s design is available | |
Cleanroom air shower features :
1) Toughened glass for the door's window
2) Fully-automatic infrared induction blowers and showers
3)Two emergencys inside and outside, it could stop the working if need.
4) Doors will close automatically when activated
5) Stainless steel nozzle on two sides, it's more effieciency to blow.
6) With low noise level
7) Arc corner 100-rank static state, patented product
8) high Bactericidal efficiency
Outlook
