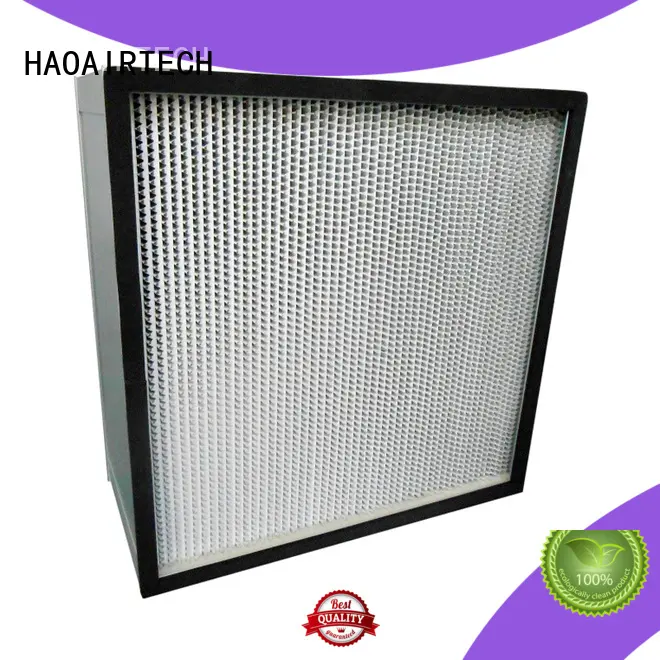

mini pleats hepa filter h12 with big air volume for electronic industry
1. Characterized by user-friendliness, HAOAIRTECH true hepa filter has passed the national optical radiation quality safety inspection to provide users with a safe and healthy light environment.
2. The functions of HAOAIRTECH product can meet and exceed customer expectation.
3. The product features high performance and long service life.
4. With its advanced technology, Guangzhou HaoAir Purification Technology Co.,Ltd. provides professional service for the customers in hepa filter h12 field.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary Resistance(Pa) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
