Company Advantages1. HAOAIRTECH h13 hepa filter goes through a wide range of fundamental tests. These tests are flammability testing, stain resistance testing, and durability testing, among others. The product prevents airborne particles and microbes from entrance
2. R&D and marketing ability are two fundamental kinds of 'core competence' for Guangzhou HaoAir Purification Technology Co.,Ltd.. The product features an energy-saving performance
3. The product consumes little energy when working. It can transform little physical or electrical energy into enormous mechanical energy to finish its tasks. The product comes with 1-2 years of warranty period
4. The product stands out for its good deformation resistance. Made of heavy-duty materials, it is able to resist a certain load and remains its original shape. A sample of the product can be offered for the confirmation of quality
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![mini pleats h13 hepa filter with dop port for dust colletor hospital 11]()
/ Product Details
part.1

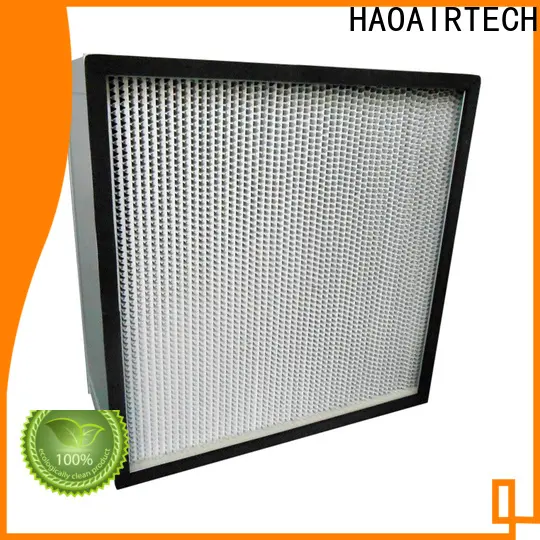

Abosulte HEPA air filter
part.2
Absolute Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. enjoys good fame in the marketplace. We are highly recognized as a qualified manufacturer for the well-made carbon air filter . There were massive expansions on key production lines to keep the supply flowing of Guangzhou HaoAir Purification Technology Co.,Ltd..
2. Guangzhou HaoAir Purification Technology Co.,Ltd. introduces the domestic and foreign advanced production equipment and h13 hepa filter technology positively.
3. With the experienced team who are experienced in manufacturing hepa air filter , HAOAIRTECH is able to provide better products. With the great dream of being a good manufacturer of portable hepa filter , HAOAIRTECH will work harder to increase customer satisfaction. Ask online!
