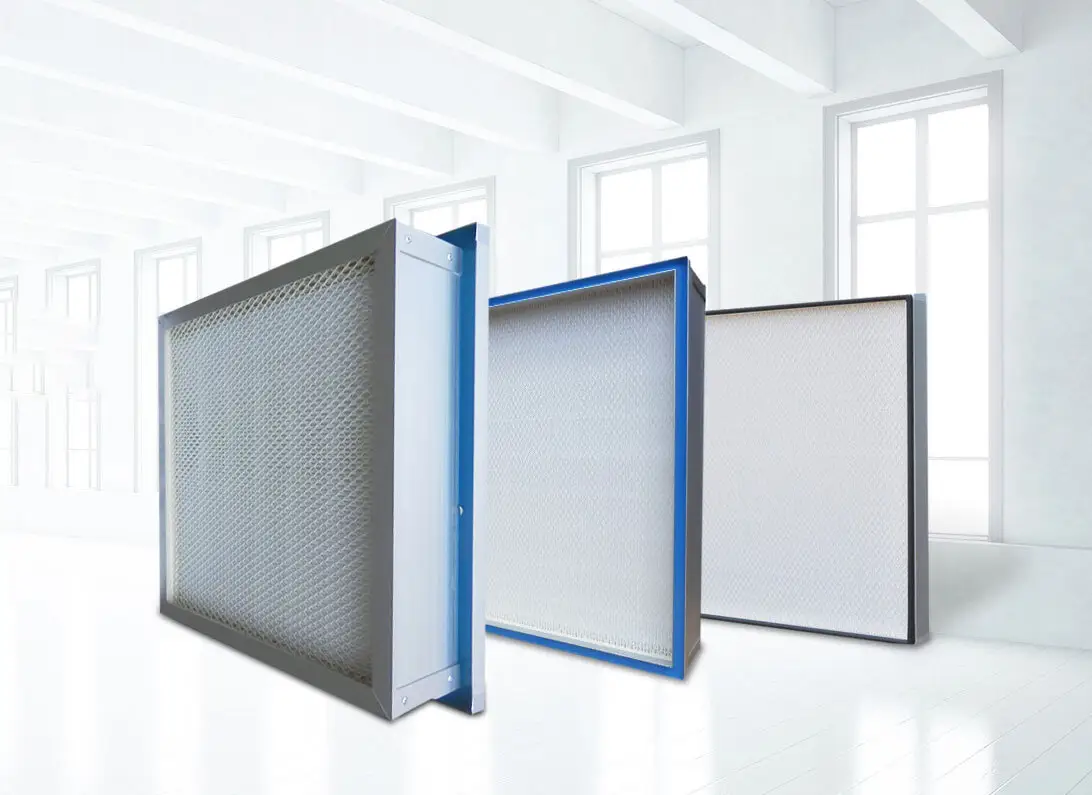

hot sale panel filters uk supplier for ventilation and air conditioning systems HAOAIRTECH

Company Advantages
1. HAOAIRTECH panel filters uk is carefully designed based on our many years of experience. The product focuses on the good physical conditions of the workers in the workshop
2. HAOAIRTECH always tries its best to provide finest panel filter. It has low noise and high mobility
3. panel filter produced by our company has the advantage over the others on panel filters uk . The product can increase the rate of finished products

Media	Synthetic fibre
Frame	AL   frame
Gasket	/
screen	metal screen in both side
Frame thickness (mm)	10/17
Efficiency	G1,G2,G3,G4
Humidity	100%
Max Temperature	80℃



Dimension	Rate air flow	Media area	Dust   Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x10	2500	0.37	50	<30	100-200	G2
			60	<40	100-200	G3
			75	<45	150-200	G4
592x287x10	1200	0.19	25	<30	100-200	G2
			30	<40	100-200	G3
			40	<45	150-200	G4
592x592x21	2500	0.37	40	<30	100-200	G2
			75	<40	100-200	G3
			95	<45	150-200	G4
592x287x21	1200	0.19	20	<30	100-200	G2
			40	<40	100-200	G3
			50	<45	150-200	G4

Customer size is available



          It is used in ventilation and air conditioning systems of office buildings, conference rooms, hospitals, gymnasiums, airports and other large civil buildings, and centralized ventilation systems per

filtration of industrial buildings. large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device and so on.

Company Features
1. The panel filter is produced by our advanced technology.
2. Following the tenet of panel air filter helps HAOAIRTECH attract more customers. Check now!
