We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
high quality cleanroom supplies new for electronics industry HAOAIRTECH
1. The quality and safety of all the materials used for HAOAIRTECH cleanroom supplies are extremely important.
2. Most of the property developers praised that this product is outstanding and satisfying because it can ensure the strength and durability of the building projects that are constructed. The product features an energy-saving performance
3. The product has stable performance and high quality, which can be used for a long time. The product can withstand high temperature
4. Upon testing, the product is in strict accordance with the global quality norms. With premium quality, the product is also fit for working under difficult operating conditions
Introduction:
Haoair Air Shower are an effective solution to reduce or even eliminate this type of contamination in order to protect the classification of the controlled enviroment.

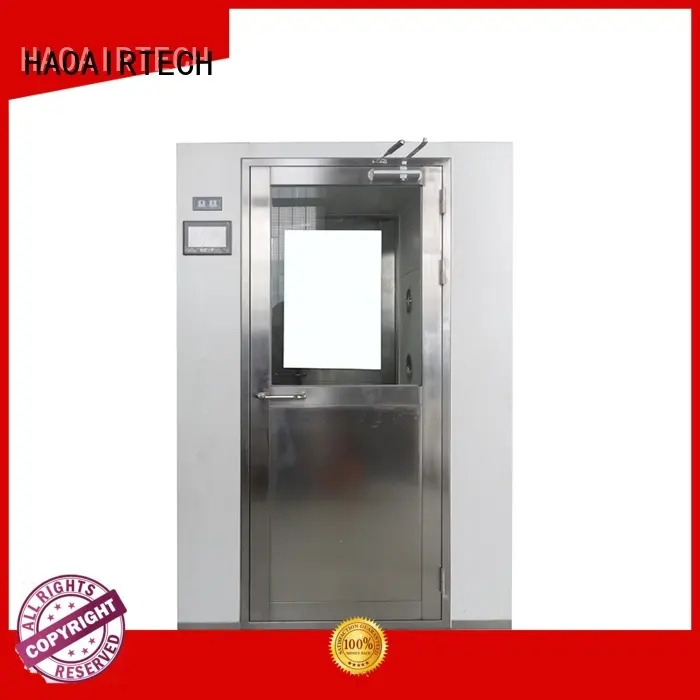

Vertical Air Shower is a cabinet type air shower designed to eliminate the particle contamination of the external surfaces of personnel and materials entering into controlled areas.
Top Side Vertical Flow Air Shower General Features:
1.Two doors with tempered safety glass.
2.Door opening direction adjustable to the room requirements.
3.Indication of cycle running.
4.Remaining cycle time.
5.Cycle time adjustable by Administrator from 0-99 seconds (other values can be programmed at the factory).
6.Alarms for blower, ventilation system, clogged filter, entry door open, exit door open, etc.
7.Fully automatic operation with programmable microprocessor to control all functions of the shower.
8.Microprocessor control to differentiate between entering and leaving cycles.
9.LED state indication for doors and shower cycle.
10.Full blown air filtration through 2 mechanical filtration stages with G4 pre-filter and ultra-filtration by HEPA H14 absolute filters.
The air shower is approval by CE and RoHS certificate.
Customer’s design is available.
Top Side Vertical Flow Air Shower Specification:
Top Side Vertical Flow Air Shower HA-AS1400V Series | ||||
Model | HA-AS1400V1 | HA-AS1400V2 | HA-AS1400V3 | |
Outer Si(mm) (WXDXH) | 1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
Inner Size(mm)(WXDXH) | 800x930x1910 | 800x1930x1910 | 800x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Air shower duration | Factory set at 15 seconds (0-99 seconds adjustable) | |||
Material | Coldrolled Steel with Baked Painting or Stainless steel 304/316 | |||
Fan consumption | 1.1KWX1set | 1.1KWX2sets | 1.1KWX3sets | |
Air flow of fan(m3/h) | 1300m3/h | |||
Fan run (r/min) | 2800r/min | |||
Nozzle in stain less steel | 16 pcs | 32 pcs | 48 pcs | |
Wind speed(m/s) | 25-30m/s | |||
Noise level(dB) | <62dB | |||
LED Fluorescent Lamp | 20wx1 | 20wx2 | 20wx3 | |
HEPA Filter | Size(mm) | 595X595X80mm(mini-pleats HEPA filter) | ||
Efficiency | 99.995%@0.3um | |||
Resistance | <220pa | |||
Pre-filter | Size(mm) | 785x385x21mm | ||
Efficiency | 75% @ 5um | |||
Resistance | <30 Pa | |||
Power supply | 380V/50Hz | |||
Top Side Vertical Flow Air Shower Compared With Traditional Air Shower:
Top Side Vertical Flow Air Shower Application:
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. consistently selects the best and most advanced equipment and integrated information systems for its plants.
2. Upholding the tenet of being the influential cleanroom equipment supplier, HAOAIRTECH has been getting its passion everyday to serve customers. Inquire!
