High Performance Explosion-proof Air Shower For Oil Refinery

Company Advantages
1. cleanroom equipment perfectly combines art and innovation.
2. cleanroom equipment reaches the advanced level of the industry.
3. As our QC experts strictly control the quality throughout the whole production process, the quality of the product can be fully guaranteed.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. is a high-tech company engaged in developing, research, production, sale and after-sale cleanroom equipment.

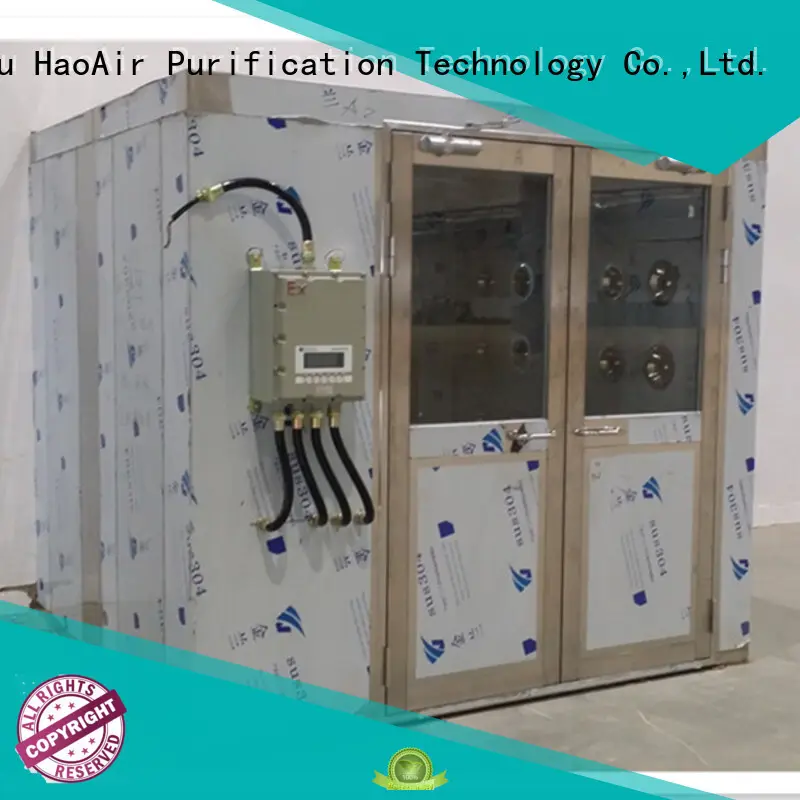

High Performance Explosion-proof Air Shower For Oil Refinery

Explosion-proof Air Shower Introduction:

Air Showers have become an integral component of the modern cleanroom because their benefits more than pay for the small amount of space they occupy. With their interlocking doors and automatic cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.

Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom. Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock. They can also be used to remove hazardous contaminate from personnel when exiting facilities

Explosion-proof Air Shower Features:

1.Explosion-proof microprocessor controller system supervises all function, two sets explosion-proof big air volume blower with low noise.

2.LCD touchable display shower time with E-stop comply with CE test.

3. Booth door with electrical interlocking, three side blowing, 16pcs SUS nozzles average air speed more than 25m/s.

4.Explosion-proof light enduring seriously environment for many years.

5.Inside infrared ray inductor sensor with OMRON brand for personal automatic showering.

6. Human being voice remind of user progress in chamber, the language version would possible according to your request.

7. Emergency button at both side help you out of sudden trouble.

8.Indicator lights mounted on both side of air shower exterior regulate traffic.

The air shower is approval by CE and RoHS certificate.

Customer’s design is available.

Explosion-proof Air Shower Specification:

Explosion-proof Air Shower HA-AS1600P Series
Model		HA-AS1600P1	HA-AS1600P2	HA-AS1600P3
Outer Si(mm) (WXDXH)		1600x1000x2180	1600x2000x2180	1600x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		0.75KWX2 sets	0.75KWX4 sets	0.75KWX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		16 pcs	32 pcs	48pcs
Wind speed(m/s)		25-30m/s(Three side blowing)
Noise level(dB)		<75dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	595X595X80mm (Mini-pleats HEPA filter)
	Efficiency	99.995%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz or 60Hz

Explosion-proof Air Shower Configuration:

Explosion-proof Air Shower Door Type:
