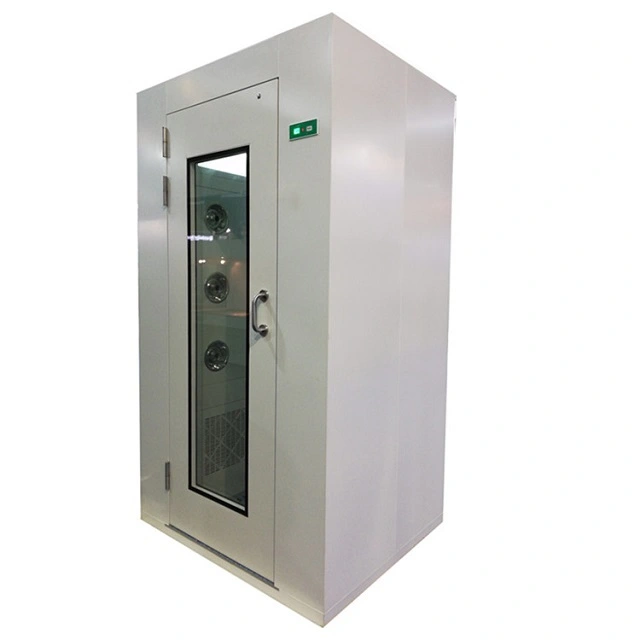

High Performance Coldrolled Steel With Baked Painting Air Shower For Clean Room
Introduction:
Air Showers is an equipment providing cleanliness for personnel, equipment and supply carts.
Nozzles jet out high-velocity and filtered air to remove stubborn particles from surfaces.
Configuration Features:
1.Microprocessor control system.
2.LCD display.
3.The air shower room duration time 0-99s adjustable.
4.Emergency button for emergency situation.
5.99.99%@0.3μm, efficiency can reach 99.99%@0.3μm with Pre filter and HEPA filter.
6.Unified specifications, easy to modify, can be customized per request.
Application:
Air shower is widely used in LCD and opto electronic display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy, auto glass and precision parts.
The air shower is approval by CE and RoHS certificate.
Customer’s design is available.
Air shower specification:
Clean room air shower HA-AS1200P Series | ||||
Model | HA-AS1200P1 | HA-AS1200P2 | HA-AS1200P3 | |
Outer Si(mm) (WXDXH) | 1200x1000x2180 | 1200x2000x2180 | 1200x3000x2180 | |
Inner Size(mm)(WXDXH) | 800x930x1910 | 800x1930x1910 | 800x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Air shower duration | Factory set at 15 seconds (0-99 seconds adjustable) | |||
Material | Coldrolled Steel with Baked Painting or Stainless steel 304/316 | |||
Fan consumption | 0.75KWX1 set | 0.75KWX2 sets | 0.75KWX3sets | |
Air flow of fan(m3/h) | 1300m3/h | |||
Fan run (r/min) | 2800r/min | |||
Nozzle in stain less steel | 12 pcs | 24 pcs | 36pcs | |
Wind speed(m/s) | > 22-27m/s | |||
Noise level(dB) | <62dB | |||
LED Fluorescent Lamp | 20wx1 | 20wx2 | 20wx3 | |
HEPA Filter | Size(mm) | 630X630X69mm | ||
Efficiency | 99.99%@0.3um | |||
Resistance | <220pa | |||
Pre-filter | Size(mm) | 785x385x21 | ||
Efficiency | 75% @ 5um | |||
Resistance | <30 Pa | |||
Power supply | 380V/50Hz | |||
Air shower room product details: Customized clean room air shower photos:
