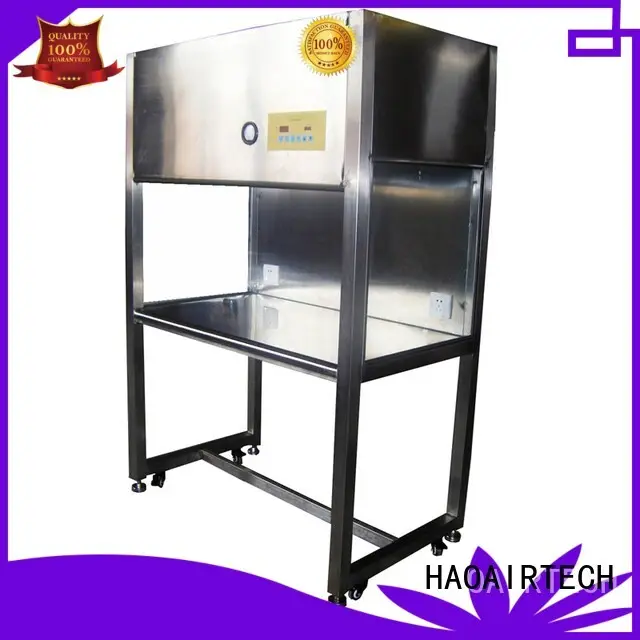

HAOAIRTECH workstation bench with hepa filtred for clean room
-
v s
1. HAOAIRTECH laminar hood is manufactured utilizing superior quality raw material and latest technology.
2. The data show thatworkstation bench has high performance such as laminar hood .
3. workstation bench produced by our company has the advantage over the others on laminar hood .
4. The application prospects of this product become more and more extensive.
5. Although its export growth rate is not very fast, it has maintained a stable growth trend.
Product Features：
Vertical air flow from top to bottom .
High cleanliness,
Low noise and movability
It can be connected into assembly line
working life is as long as 30 thousand hours or more.
maintenance-free , small vibration,
stepless speed regulation
Introduction:
vertical laminar flow bench is same with horizontal clean bench are one kind of air purifying equipment which can provide local dustless and aseptic working environment, and can control and discharge the polluted air artificially through a special filtering channel to avoid harming people and the environment.
Application:
It widely used in biological laboratory, medical, health, biopharmaceuticals, optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification.
It has a good effect on improving technological conditions, protecting the health of operators, improving product quality and product rate.
Characteristic：
Vertical laminar flow bench with high purification rank class100
It adopts super thin mini-pleats high efficiency air filter take up very small space.
Stainless steel worktable, plexiglass enclosure.
Using touchable LED control board, the fan air volume can be adjusted in steplessly,
This make sure the wind speed in the working area is always in keep an ideal state.
Equipped with differential pressure gauge, clearly indicating the pressure difference between the two sides of the high-efficiency filter, and promptly remind the replacement of air filter.
The dismantling large air volume pre filtration coarse efficiency filter can better protect the high-efficiency filter and ensure the wind speed.
Products Parameter：
HA-VCB-2 | HA-VCB-3 | ||
External size (mm) (WXDXH) | 1500X700X1800 | ||
Work zone (mm) (WXDXH) | 900x650x600 | 1100x650x600 | 1400x650x600 |
Purification rank | FS209E 100Rank | ||
Rating airflow(m3/h) | 950m3/h | 1100m3/h | 1400m3/h |
Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
Average wind speed | 0.3-0.6m/s Adjustable | ||
Intensity of illumination | >300lx | ||
30WX1 | 40WX1 | ||
(Option) | 1：Entirety Sus304/201 2：External is steel with power coated, Internal is SUS304 3: External is steel with power coated. Internal is SUS201 | ||
Control board | 1: Control the air speed up/down 2: Power off /on 3: Working time display 4: Working area light on/off 5: Alarm indicator | ||
Power | 280W | 405W | 490W |
Noise | <65dB | ||
Power supply | 220V-240V AC 50HZ | ||
Packing size | 1160x980x1780mm | 1400x1020x1780mm | |
