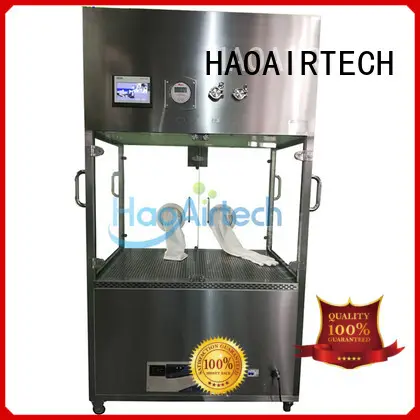

HAOAIRTECH vertical laminar flow transport cart supplier online
1. laminar flow transport cart is composed of stainless steel utility cart.
2. The product has a smooth and flat surface. There are no burrs, dents or lifting corners on the cabinet body.
3. The product has renowned excellent seam quality. It has passed the seam strength test in which the product will be stretched with normal force.
4. There will professional technical persons to help you if there is any problems for our laminar flow transport cart.
PLC touchable screen display for operator
DOP /PAO test port for the air filter efficiency
Stainless steel roller conveyor
Vertical laminar air flow
Air speed: 0.45m/s
Dwyer differential gauge
Material: stainless steel304 (t=1.0/1.2)
/ Products Parameter:
MODEL | HA-LSC715A | HA-LSC715B | HA-LSC715C |
External size (mm) (W*D*H) | 715X1000X1900 | 715X1300X1900 | 715X1500X1900 |
Work zone (mm) (W*D*H) | 615X900X650 | 615X1200X650 | 615X1400X650 |
Air speed | 0.45m/s +_20% | ||
Purification rank | ISO5(Class A) | ||
Control system | LCD Control board | ||
Noise | 65dB | ||
Illumination | >300lux | ||
Power | 0.5kw | 0.7kw | 0.9kw |
Illustrate
1: Control Board 2: Pressure differential gauge 3: DOP /PAO Test port 4： Fan 5: Gel seal HEPA filter 6: Glove Hole 7: Unpowered roller 8: Battery
9: UPS 10:Charging Port 11: Universal wheel 12: Feeding Port 14: Per-filter
Introduction:
Haoairtech brand laminar air flow transport carts are designed to transport products in an ISO 4 or ISO 5 environment. that constructed of 304 or 316L stainless steel.
all seams are welded internally utilizing panelized construction. Welds ground smooth and polished. Heavy duty，stainless steel casters, electro-polishing or passivating available.
all carts custom made to client requirements.
1: Easily removable Gel-seal HEPA air filter (rated 99.99% efficiency
@0.3um particles or an ULPA air filter, rated to 99.999% efficient@ 0.12um particles
2: Self-contained battery and charger system designed for continuous use.
typical battery run time 1 to 4 hours.
1：The air flow can be single pass exiting through the bottom of the cart or be recirculating to avoid the leakage of the air.
2: Convenient alternative to vacuum sealing, conveyor transport, and other transfer methods
3: Heavy-duty, cushioned casters ensure smooth rolling over any industrial floor type
4: Isolator gloves allows the operation of hazardous.
1: Pressure gauge alarms and low run time Indicators are standard.
2: 304 Stainless steel construction ensures durability and cleanliness
(electric -polishing available)
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. HAOAIRTECH is one of the leading supplier within the laminar flow transport cart industry.
2. Our expertise is unparalleled, as our ever-growing operation has serviced thousands of satisfied customers throughout China and many other countries in Europe, Asia, South America, and Africa.
3. All employees at HaoAir Purification are ready to provide satisfactory and honest services to customers with an active attitude. HaoAir Purification will continue to enrich the product lines that consumers around the world would love.
