We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

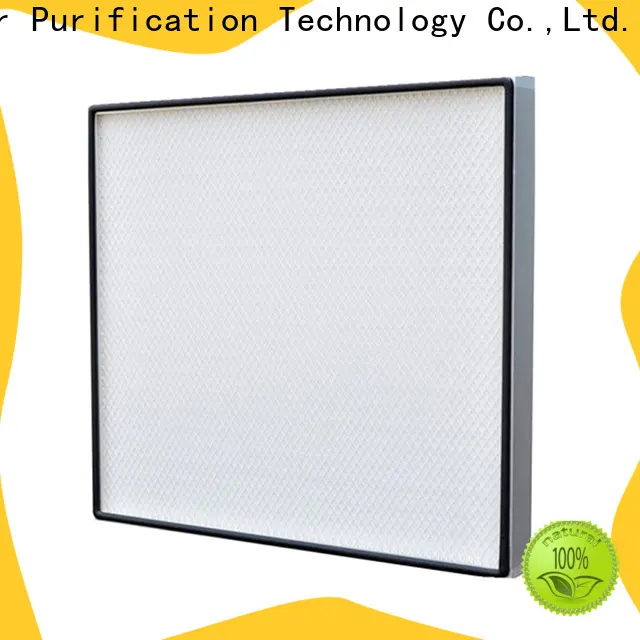

HAOAIRTECH v bank h14 hepa filter with big air volume for air cleaner
1. h14 hepa filter shows obvious advantages with central air filters materials. The product can be used to save time for cleaning and vacuuming
2. The product is expected to be reliable, requiring minimal maintenance, which helps improve and enhance the delivery of care. The product creates a clean environment to reduce allergy and asthma symptoms
3. h14 hepa filter is one of the most promising new developments of central air filters field , due to hepa filter for cleanroom . The product features an energy-saving performance
4. h14 hepa filter is of characteristics of central air filters .
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats ULPA air filter
Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
Applied to the terminal filtration of the air-condition filtration system
Media | America HV Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.9995%-99.99995%@0.12um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally | Efficiency |
320X320X50 | 120 | 2 | 130 |
<200Pa |
400-600pa |
U15-U17 |
484X484X50 | 300 | 4.5 | 300 | |||
610X610X50 | 500 | 7.1 | 428 | |||
915X610X50 | 730 | 10.6 | 635 | |||
1220X610X50 | 980 | 14 | 842 | |||
305X305X69 | 150 | 2.9 | 173 | |||
484X484X69 | 400 | 6.5 | 393 | |||
610X610X69 | 600 | 10.3 | 622 | |||
915X610X69 | 900 | 15.4 | 923 | |||
1220X610X69 | 1200 | 20.4 | 1224 |
Application
Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. By virtue of high quality h14 hepa filter , Guangzhou HaoAir Purification Technology Co.,Ltd. stands out and pioneers in the fierce market competition. Guangzhou HaoAir Purification Technology Co.,Ltd.'s new top production base will continue to produce a variety of hepa filter manufacturers .
2. HAOAIRTECH has its own quality control institutions for air filter hepa .
3. With a view to reaching high quality demands, Guangzhou HaoAir Purification Technology Co.,Ltd. uses imported superior raw material and advanced production facilities. Guangzhou HaoAir Purification Technology Co.,Ltd. is responsible and very concerned about the needs of customers. Call!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
