HAOAIRTECH terminal filter fan unit units for cleanroom ceiling
- HaoAirtech has built a perfect after-sales service system to ensure fast and timely service.
1. Quality inspection for HAOAIRTECH filter fan unit includes several parts: formaldehyde emission amount, harmful substances emitted from the adhesives, as well as the carcinogenic in the paint.
2. The product is highly praised and has a long service life.
3. This product can be a timeless and functional piece that will fit one's space and budget. It will make the space welcoming and complete.
4. This product is basically the bones of any space's design. The right combination of this product and other pieces of furniture will give rooms a balanced look and feel.
Low running irrigation surface power consumption,
Cost reduction and microcomputer control
maintenance-free can adjust the wind speed with the increase of
resistance to maintain the air balance.
Suitable for use in cleanliness class Class1-1000 cleanroom.
,
Introduction

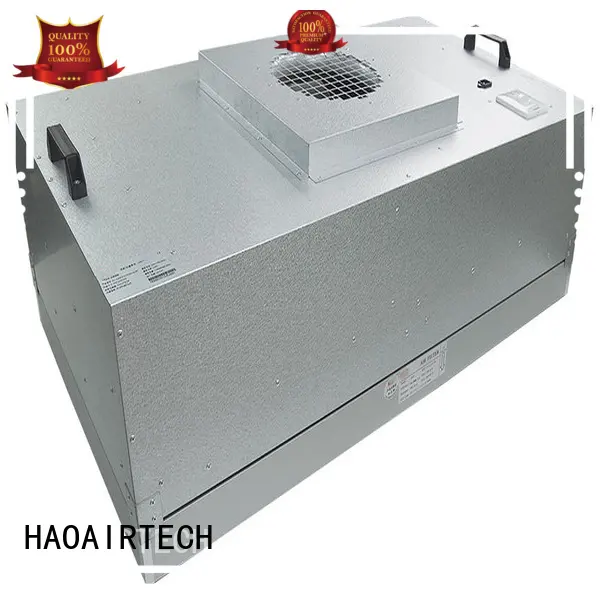

Fan filter unit is a ceiling HEPA unit with internal fan. It is used in turbulent flow and laminar flow clean room. The design of the unit is flexible. According to the design specifications,
It can easily cooperate with any ceiling skeleton to meet the requirements of clean grade 1000 to 10. Fan filter unit is one of the most quiet and well priced units in the clean market at present.
With this unit, high quality air can be transported to the clean room. And the air manifold is good,
HA-FFU920 | HA-FFU1175 | HA-FFU1225 | ||
External size (mm) (WXDXH) | 920x615x350 | 1175x575x350 | 1225X615X350 | |
Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | |||
Air flow(m3/h) | 800 | 1000 | 1200 | |
Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | |||
Pressure(pa) | 97(10mmAq) | |||
HEPA FILTER | Size(mm) | 915X610X69mm | 1170x570x69mm | 1220x610x69mm |
Efficiency(%) | 99.995%@0.3um | |||
Frame | Aluminum in good quality | |||
Pressure (pa) | <220pa@0.45m/s | |||
characteristics | Choose patent no-gap technology to make PU gasket | |||
motor | Power supply | 220V/50HZ | ||
Type | Aluminum turbine motor | |||
Vibration (mm/s) | Vibration quotiety 0.2-0.5m/s | |||
Power (w) | 123w | 123w | 172w | |
Weight (kg) | 24kg | 28kg | 31kg | |
Noise (Db) | 57 | 57 | 8 | |
Customer size is availble.
Illustration : 1: plastic handle 2: fan 3: hepa filter 4: per-filter 5: control panel 6: power cable .
Light weight, corrosion resistance, beautiful appearance.
It can easily match all kinds of high efficiency filters and HEPA or ULPA.
Application
It is suitable for semiconductor, electronics, flat panel displays and disk drives manufacturers and optical, biological industries, such as clean rooms, clean workbenches, clean production lines, assembly Cleanrooms and local 100-level cleanroom and other places with strict control of air pollution requirements of low energy consumption. reduce operating costs.
Fan Filter Unit Control System :
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
