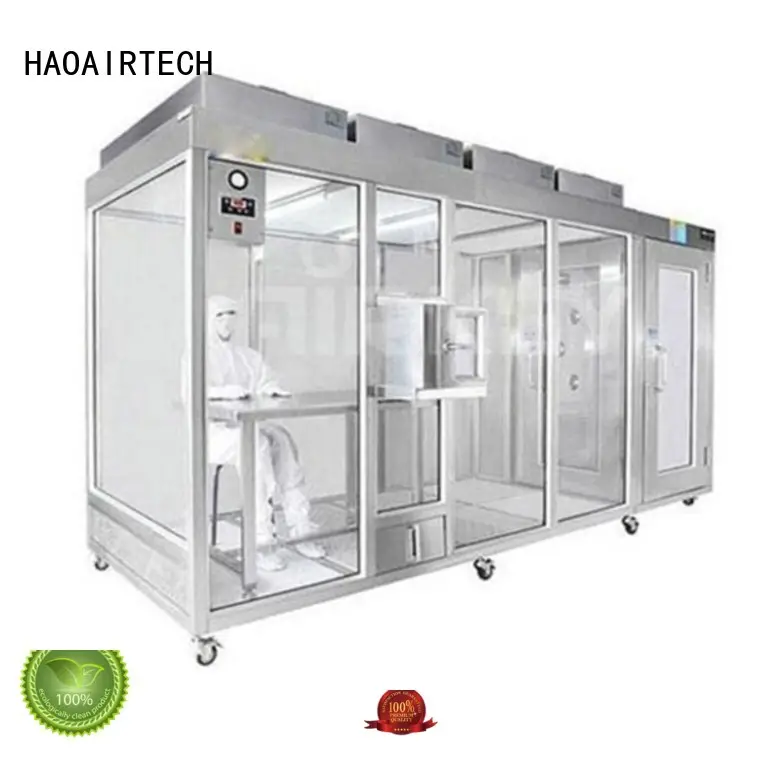

HAOAIRTECH simple cleanroom systems vertical laminar flow booth for sterile food and drug production

Company Advantages
1. Advantages such as cleanroom design and construction have helped cleanroom systems win the market. It highly conforms to the dustless workshop management standard
2. This product is extremely durable in use, and it is able to last for a long time without losing its luster. The product will greatly improve the quality of factory-made products
3. To ensure the quality, it will be fully tested by our professional staff. The product is reputed for its long service life

Non-standard Custom Simple Cleanroom For Sterile Food And Drug Production

Principle of cleanroom

The dust-free workshop refers to the removal of particulates, harmful air, bacteria and other pollutants in the air within a certain space, and the indoor temperature, cleanliness, indoor pressure, airflow velocity and airflow distribution, noise vibration and lighting, static electricity Controlled within a certain range of demand, and given a specially designed room. The interior has the characteristics of maintaining the cleanliness, temperature, humidity and pressure required by the original requirements. The purification workshop has several grades according to factors such as regional environment and purification degree.

Partial clean room type

Customer's design is available!

MODEL	HA-LFB2000	HA-LFB3000	HA-LFB4000	HA-LFB5000
Ex size (mm)(W*D*H)	2000X2000X2596	3000X3000X2596	4000X4000X2596	5000X5000X2596
In size (mm)	1900x1900x2205	2900x2900x2205	3900x3900x2205	4900x4900x2205
Purification rank	Class10-300,000(FS209E USA)
HEPA filter	Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filter	Efficiency : 85% @ 5um
Control system	PC control system / promised speed by control box
Pressure Gauge	American Dywer pressure
Noise	<50-55 dB (test point distance is 1m)
Air velocity(m3/h)	0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame material	stainless steel/steel with power coated/Cast aluminum profile
Wall frame	Tempered glass / PVC anti-static curtain (option)
Fan	EBM Fan /Taiwan fan/ Domestic fan (option)
Power suppler	AC110/220v 50HZ/60HZ

Product configuration

1. The frame can be made of industrial aluminum, stainless steel, etc.

2. Walls can be equipped with anti-static curtains or tempered glass.

3. The fan filter unit is configured according to the requirements of the plan.

4. Internal clean room dedicated purification lamp.

5. Can install universal wheel.

Scope of application

Hospital operating room, biopharmaceutical room, chemical laboratory, dust-free aseptic production workshop, tissue culture inoculation industry, optical lens industry, electronic instrument industry, food packaging industry.

Product design drawing

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. mainly exports cleanroom systems with high quality to all over the world. HAOAIRTECH carries out technological innovation and maintains competitiveness in the modular clean room manufacturers industry.
2. HaoAir Purification follows the concept of technological development.
3. In order to be a better clean room manufacturers supplier, HAOAIRTECH uses the most advanced technology and machines. Guangzhou HaoAir Purification Technology Co.,Ltd. will always offer customers high quality and perfect customer service. Contact us!
