HAOAIRTECH simple clean room manufacturers with ffu for semiconductor factory

Company Advantages
1. The development of HAOAIRTECH clean room manufacturers is the soul of wit of our R&D team. It is developed with great performance and functionality by the R&D staff who have experience in energy conservation and consumption reduction, the knowledge of transformer and motor, and the wiring installation. The product can increase the rate of finished products
2. Installing this product into operation means a range of tasks can be completed faster, freeing up staff to concentrate on other areas of production. With the shell galvanized, the product is crack-resistant and wear-resistant
3. Our commitment to quality and performance is stressed in each phase of creating this product. The product comes with 1-2 years of warranty period
4. clean room manufacturers offers a stunning blend of features and performance. The product is of high purification rank

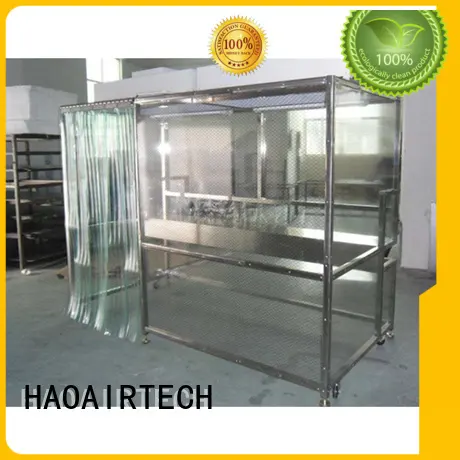

SUS 304 Frame Softwall Clean Room

Introduction

 1. With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.

2. Easy installation, low cost, modularized design and easy upgrading

 Application

LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy, Packing,Food

Main Features

(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Display :

Company Features
1. Years of continuous progress makes Guangzhou HaoAir Purification Technology Co.,Ltd. an expert in this field. We specialize in the production of clean room manufacturers and other similar products.
2. The factory enjoys a geographical advantage. It is near to a broad range of high-quality raw materials suppliers, which benefits us in sourcing raw materials at a relatively low price yet high quality.
3. Guangzhou HaoAir Purification Technology Co.,Ltd.'s mission: manufacture reliable products at competitive prices. Ask!
