We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

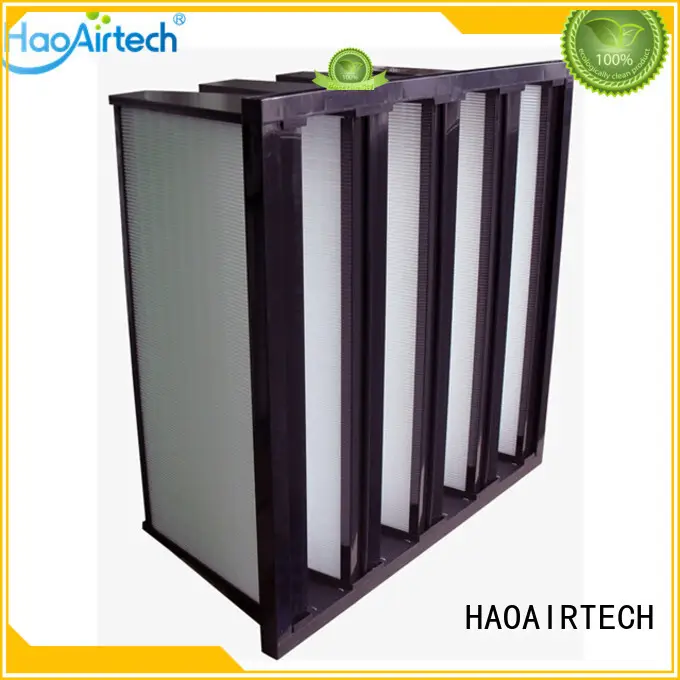

HAOAIRTECH secondary v cell rigid filter with two side flang for schools and universities
- HaoAir continuously maintains relationships with regular customers and keeps ourselves to new partnerships. In this way, we construct a nationwide marketing network to spread the positive brand culture. Now we enjoy a good reputation in the industry.
1. In the development of HAOAIRTECH v cell rigid filter , safety and practicability are both considered. Its precision and quality of manufacture, as well as the management of machine risk and reliability, are all carefully thought of by technicians.
2. This product has a higher point elasticity. Its materials can compress in a very small area without affecting the area beside it.
3. This product can eliminate foot odor by allowing wearers' feet to breath and regulating moisture, and keep the feet stay cool the whole day.
Products Characteristics:
Big air volume
Low Resistance
High dust holding capacity
ABS frame comply with Rosh test report
Both side with screen protect the media
PU gasket or EVA gasket for your choose .
Introduction:
The media material is super glass fibre for 0.5um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
ABS/PVC frame in 3V,4V,5V for your choose.
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V Cell air filter
Filtration Efficiency: F9.F8,F7,F6,(ASHAR ).
Applied to the terminal filtration of the air-condition filtration system
Products Parameter：
Dimension (mm) (W*H*D) | Pack NO | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Efficiency | Rate primary Resistance (Pa) | Finally Resistance (Pa) |
592X287X292 | 4 | 2100 | 11.02 | 660 | F7 65%@0.5um |
<80Pa |
300-350pa |
592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
610X610X292 | 5 | 5400 | 29 | 1750 | |||
592X287X292 | 4 | 2100 | 11.02 | 660 | F8 85%@0.5um |
<100pa |
350-400pa |
592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
610X610X292 | 4 | 5400 | 29 | 1750 | |||
592X287X292 | 4 | 2100 | 11.02 | 660 | F9 90%@0.5um |
<120pa |
400-450pa |
592X490X292 | 4 | 3550 | 18.6 | 1200 | |||
592X592X292 | 4 | 4500 | 22.1 | 1350 | |||
610X610X292 | 5 | 5400 | 29 | 1750 |
Application:
1: Optical electronics, biological pharmaceuticals, medical laboratories, food and beverages, daily chemical semiconductors, precision instruments and other
industries Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms
2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,
3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.
Company Features
1. hvac filter box is a company providing ridgid air filter . For years, we have been one of the most prestigious manufacturers in China.
2. We adopt world-advanced technology when manufacturing v cell rigid filter .
3. The mission of HAOAIRTECH is to improve the quality of v rigid filter with a more competitive price. Call! Guangzhou HaoAir Purification Technology Co.,Ltd. is always on the road of excellence for rigid filter . Call! To serve customers better, HAOAIRTECH has established its own service team. Call!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
