HAOAIRTECH secondary compact rigid filter with abs frame for schools and universities

Company Advantages
1. HAOAIRTECH hvac filter box is precisely manufactured in accordance with industry set norms.
2. The product has the advantage of flammability resistance. Its fabrics have been specially treated to reduce its burning rate when there is a fire.
3. This product is safe. Any treatment agents used in the fabric are harmless and contain no formaldehyde and aromatic amine.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. can help to provide guidance about selecting the best development framework for a compact rigid filter products or service.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass  fiber with foil clapboard
Frame	Aluminium/ galvainzed frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	120、150/292mm
Screen	Metal   screen
Efficiency	F6/F7/F8/ F9
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical

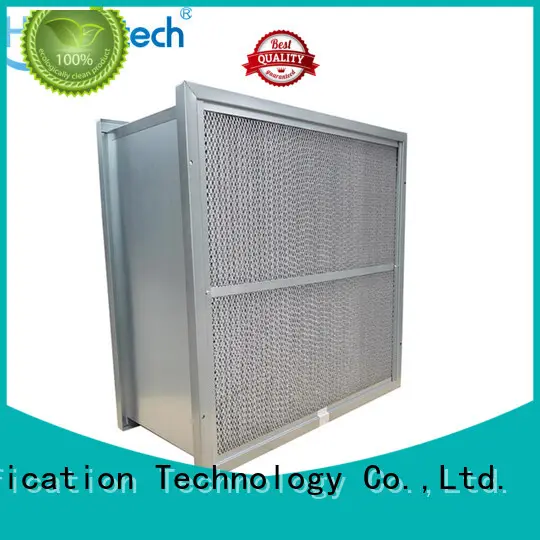

  Picture :

1: Galvanized material frame in interlocker style :                    2: Both side is flange without any screw。

3: Both side is metal screen with one bard for endure high air volume.
