Company Advantages1. HAOAIRTECH portable
air filter undergoes a series of production processes that involve prototyping, milling, turning, broaching, wire-cut electro-discharge machining (EDM), ultrasound wash, and assembly. With premium quality, the product is also fit for working under difficult operating conditions
2. The product can significantly liberate people from heavy-duty and monotonous work, allowing people to spend time focusing on other important tasks. The product comes with 1-2 years of warranty period
3. The QC team has been always paying close attention to the quality of this product. The product can withstand high temperature
4. All indicators of this product meet the requirements of international quality indicators. A sample of the product can be offered for the confirmation of quality
Characteristics
The media material is super glass fibre for 0.3um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
GL or AL material frame for your choose.

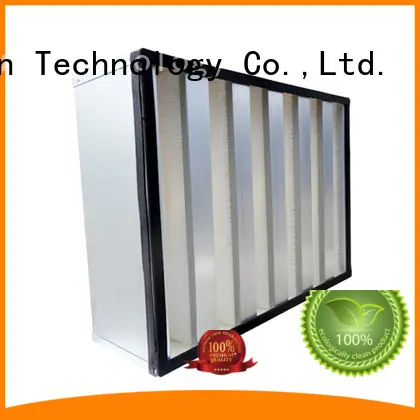

V Type special frame can let the hepa air filter have more big media area.
More high air volume and more lower resistance
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V-Bank HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
/ Products Parameter
Dimension(mm)
(W*H*D) | Pack NO | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally
Resistance
(Pa) |
285X285X292 | 2 | 700 | 5.42 | 325 | 220pa | 400-600pa |
592X592X292 | 3 | 2100 | 16.43 | 986 |
592X592X292 | 4 | 2800 | 21.91 | 1315 |
610X610X292 | 5 | 3600 | 28 | 1692 |
610X915X292 | 6 | 4300 | 34 | 2031 |
484X484X292 | 3 | 1700 | 13.5 | 811 |
610X305X292 | 5 | 1800 | 14.5 | 866 |
305X610X292 | 3 | 2150 | 17 | 1015 |
630X630X292 | 5 | 3700 | 29 | 1746 |
600X600X292 | 5 | 3500 | 27 | 1665 |
570X570X292 | 4 | 2700 | 21 | 1267 |
320X320X292 | 3 | 1150 | 9 | 544 |
515X515X292 | 4 | 2400 | 19 | 1148 |
610X484X292 | 5 | 2850 | 22.5 | 1351 |
490X592X292 | 4 | 2800 | 22 | 1315 |
592X490X292 | 4 | 2300 | 18 | 1094 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH replaceable portable air filter for dust colletor hospital 12]()
/ Product Details
part.1
Hepa Air Filter With EVA Gasket
part.2
Hepa Air Filter With EVA Gasket
part.3
Mini-Pleats Media Compact
part.4
Air Filter Dust Detection Test
Application
V Bank HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,
bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the professional supplier of the international high-quality h12 hepa filter provider. Guangzhou HaoAir Purification Technology Co.,Ltd. always introduces technical and professional personnel to increase technical capabilities.
2. Our engineering equipment that produces portable air filter is in a leading position locally.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. has a profound understanding and has acquired a mastery of h14 hepa filter technology. Our goal is to become a well-known house air filters supplier in the future. Call now!
