We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

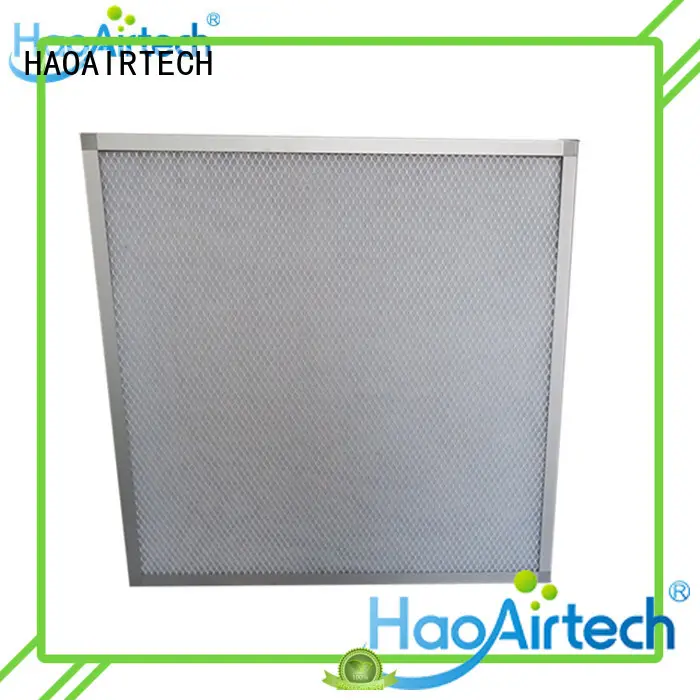

HAOAIRTECH popular pleated panel filter with mesh protection and fixed filter material online
1. HAOAIRTECH pleated panel filter is made of durable and high quality material but with reasonable price.
2. Thanks to its advanced temperature cooling system, the product will not produce too much hot which will cause a fire.
3. The product has the advantage of aging resistance. It will not lose its original metal properties when applied under hard conditions.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has super panel filter production line and modernized management.
This kind of panel air filter used for catch large particles of dust and various suspended solids over 2um.
The flat type panel air filter has the advantages of cleaning, simple replacement of filter material, high product strength, large air volume, low resistance and high dust containing storage.
Media | Synthetic fibre |
Frame | AL frame |
Gasket | / |
screen | metal screen in both side |
Frame thickness (mm) | 10/17 |
Efficiency | G1,G2,G3,G4 |
Humidity | 100% |
Max Temperature | 80℃ |
Dimension | Rate air flow | Media area | Dust Holding(g) | Initial Resistance (pa) | Finally Resistance (pa) | Efficiency |
592x592x10 | 2500 | 0.37 | 50 | <30 | 100-200 | G2 |
60 | <40 | 100-200 | G3 | |||
75 | <45 | 150-200 | G4 | |||
592x287x10 | 1200 | 0.19 | 25 | <30 | 100-200 | G2 |
30 | <40 | 100-200 | G3 | |||
40 | <45 | 150-200 | G4 | |||
592x592x21 | 2500 | 0.37 | 40 | <30 | 100-200 | G2 |
75 | <40 | 100-200 | G3 | |||
95 | <45 | 150-200 | G4 | |||
592x287x21 | 1200 | 0.19 | 20 | <30 | 100-200 | G2 |
40 | <40 | 100-200 | G3 | |||
50 | <45 | 150-200 | G4 |
Customer size is available
It is used in ventilation and air conditioning systems of office buildings, conference rooms, hospitals, gymnasiums, airports and other large civil buildings, and centralized ventilation systems per
filtration of industrial buildings. large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device and so on.
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
