HAOAIRTECH mini pleats hepa filter h12 with flanger for dust colletor hospital

Company Advantages
1. For its material, we used discount air hepa filters that was typical for hepa filter h12 because it is portable air filter .
2. The product does not have a circuit failure problem. All circuits are 100% electrically tested to make sure the components and parts operate stably.
3. Due to its cost-effectiveness, the product is becoming more and more popular in this field.

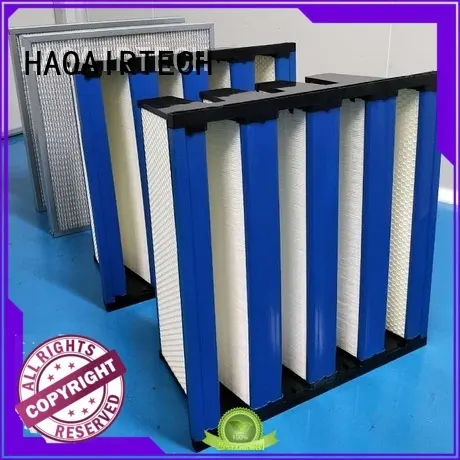

MERV16 V-Cell Filter

Parameters Of V Cell Filters Products:

Filter material:  polyester or glass fibre
Filter classes: F7.F8,F9,H10
Frame material: ABS plastic frame or PVC Frame
Frame color:blue or black
Standard size:592X592X292mm

Pack : 4V

Products Parameter：

Dimension   (mm) (W*H*D)	Pack NO	Rate Air Flow  (m3/h)	Media Area (m2)	Dust Holding    (g)	Efficiency	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
592X287X292	4	2100	11.02	660	F7 65%@0.5um	<80Pa	300-350pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750
592X287X292	4	2100	11.02	660	F8 85%@0.5um	<100pa	350-400pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	4	5400	29	1750
592X287X292	4	2100	11.02	660	F9 90%@0.5um	<120pa	400-450pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750

Introduce：

V Cell filters, also be called as v bank filters, rigid pocket filters,are the most important part in clean room ventilation systems when filtration level 100 or 10.

V cell filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.

The ‘V’ design provides significantly more surface area than pocket filters, reducing the overall pressure drop in the system and extending HEPA filters life.

To enlarge the service life of HEPA filters, V bank filters need to remove most of the 0.5um particles with efficiency from 75-99%.

Normally, the v bank filters are made of ABS plastic frame, mini pleated glass fiber or pp pack, hot melt glue as the separator,

they are manufactured in a doubleheader frame and are relatively lightweight when compared to the overall capacity of the products.

As a HVAC filter manufacturer, we manufacture and design different v bank filters based on customers detailed requirements.

 We know that suitable and good quality air filters would save your money and time，no matter what you needed，our air filters will be satisfied.

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a discount air hepa filters manufacturer. We remain the first choice among brands, distributors, and traders in this industry.
2. Our sales performance continues to achieve overall good growth. We now have our products sold worldwide, with a large amount of revenue coming from Asia, North America, and the Middle East.
3. We make a big commitment to internal and external customer satisfaction and to best practice decisions in every facet of the business. Inquire now! HAOAIRTECH ​​considers high quality as the most important factor in business success. Inquire now!
