We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

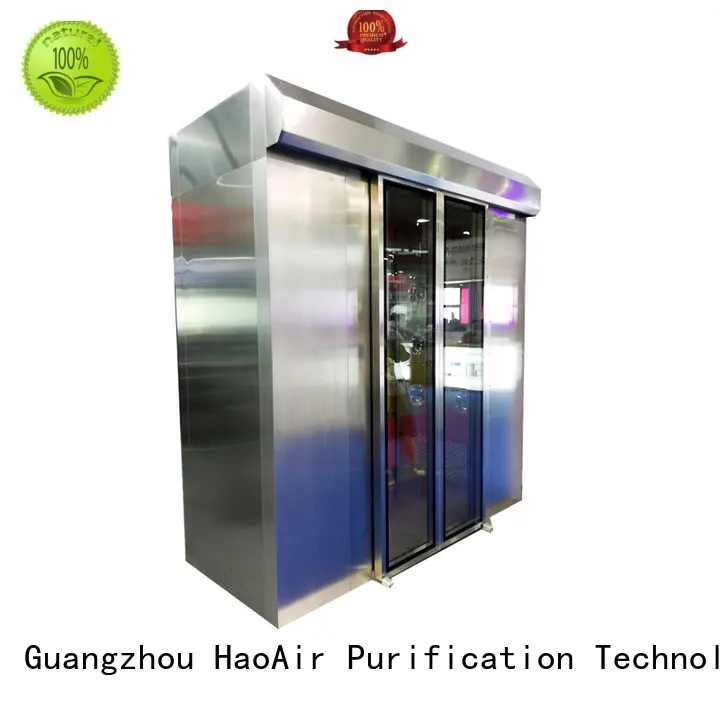

HAOAIRTECH intelligent air shower room with stainless steel for large scale semiconductor factory
- HaoAir receives converted recognition from customers depending on good product quality and a comprehensive service system.
1. HAOAIRTECH air shower room is innovatively designed. It is carried out by our designers who know how to minimize susceptibility and radiation of the electric appliances.
2. The product is breathable. It is made of materials that have open cells to allow the air and moisture to pass through.
3. The use of this product can reap major benefits. It relieves workers from the continuing complex, repeated, and labor-intensive tasks.
4. This product adds class and fashion to the bedroom design, making itself a versatile item that can be used in a variety of settings.
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 2000*2000*2180mm
Internal size: 1500*2000*1910mm
Sus nozzle: 32pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS2000P2 | HA-AS2000P3 | |
External size (mm) | 2000x2000x2200mm | 2000x3000x2200mm | |
Work zone (mm) | 1500x1930x2000mm | 1500x2930x2000mm | |
Air speed (m/s) | >25m/s | ||
Door material | Stainless steel frame with half glass or full glass | ||
Door control system | Auto sliding double door | ||
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | ||
Control system | 1: Control system with LED display for the shower time. | ||
The power of fan | 380V/50HZ/0.75KW(4 sets) | 380V/50HZ/0.75KW (6sets) | |
Nozzle in stain less steel | 32 pcs | 48pcs | |
Noise level(dB) | <75dB | ||
HEPA FILTER | Size(mm) | 630X630X80mm (4 sets) | 630X630X80mm(6 sets) |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
Air velocity | 1000(m3/h) | ||
Initial resistance(pa) | <180pa | ||
Pre-filter | Size(mm) | 775x380x17 | |
Efficiency (%) | 75% @ 0.5um | ||
G3 | |||
resistance(pa) | <30Pa | ||
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 3kw | 4.5 kw | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Weigh | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Power indicator 5: Emergency switch 6： Sliding door 7: HEPA air filter (H13 99.995%@0.3um) 8:Fan 9: Per-filter 10: important door closer 11: purification light
Door opening method:
1：Wireless remote control switch 2: Microwave sensor automatically 3: Non-contact sensor Switch 4: Contact push button Switch
Auto –sliding door Air shower control system procedure:
From contaminated zone to Clean room area:
2: when the person or cargo inside of air shower, the door will be closed automatic according setting time.
3: When the person or cargo arrived the air shower sensor area, but door will be interlocking and start the self-clean system.(0-90s)
4: After the self –clean system finished working, the exit door will be open automatic.
5: The person and goods go out of the door, some seconds later the exit door closed automatic.
The air shower procedure will be back standby state.
From clean room area to contaminated :
2: when the person or cargo inside of air shower, the exit door will be closed automatic according setting time.
3:when the exit door closed , 10s later the entrance door will be open automatic ,
4: the person and cargo go out of the entrance door, the door will be closed within setting time.
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. After years of involvement in the production of air shower supplier , Guangzhou HaoAir Purification Technology Co.,Ltd. has gained a good reputation in the industry.
2. The technology applied in the production of air shower room has a high reputation.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. is always working hard, just for customers' needs. Please contact us! Guangzhou HaoAir Purification Technology Co.,Ltd. strives to be stable air shower manufacturer suppliers of global market. Please contact us! With the support of our professionals, HAOAIRTECH has enough confidence to make air shower price . Please contact us! With lofty ambition, HAOAIRTECH will keep improving in developing air shower system industry. Please contact us!
| Model | AS-1 | AS-2 | AS-3 | AS-4 |
| Applicable Number of People | 1 | 3-4 | 5-6 | 8-10 |
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×1960 | 800×1900×1960 | 800×2900×1960 | 800×3900×1960 |
| Outside Dimension (mm) | 1400×1000×2100 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
| Power Supply | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
