We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
HAOAIRTECH high efficiency clean room construction with antistatic vinyl curtain for semiconductor factory

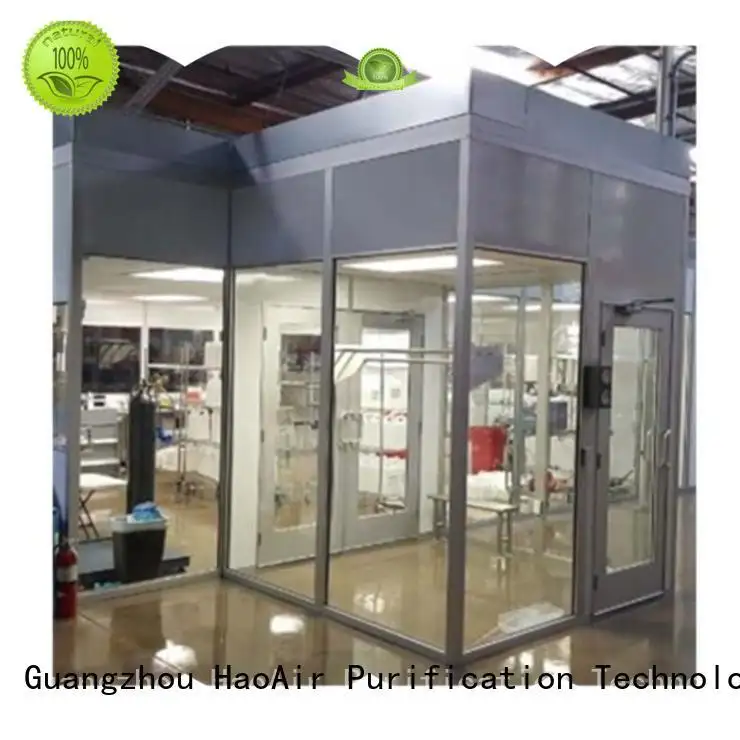

ISO8 Hardwall cleanroom
Introduction
The softwall clean room/clean booth,the frame is made of powder coated steel and the roof equipped several high performance filters and F.F.U. is able to easily move and set up on any place; thus, the major advantage of it gains portability and cost-effictive.
Feature :
Constructed with powder coated steel
Walls are available in hard acrylic panels or soft anti-static strip vinyl curtains
Affordable & easy to install
Free-standing structure, does not require any suspended ceiling support
Built-in warm white flourescent lamp ballast for flicker free usage and user eye comfort
Low noise centrifugal-type fan filter unit, long life time, maintenance-free, minimal vibration, and large dust holding capacity
Application:
Precision measurement
Laboratory(Optics)
Electronics(LCD, Semiconductor)
Medical tech(Bio technology, BioOptics)
Parameter:
Customer's design is available!
| Soft Wall Clean Room | ||||
| Model | HA-CSA2*3 | HA-CSA3*4 | HA-CSA4*6 | HA-CSA6*8 |
| External Size (W×D×H)mm | 2100×3100×2800 | 3100×4100×2800 | 4100×6100×2800 | 6100×8100×2800 |
| Internal Work Zone (W×D×H)mm | 2000×3000×2400 | 3000×4000×2400 | 4000×6000×2400 | 6000×8000×2400 |
| QTY of FFUS | 6PCS | 12PCS | 20PCS | 40PCS |
| AIR VOLUME(m3/h) | 7200 | 14400 | 24000 | 48000 |
| Total Power | 0.7KW | 1.4KW | 2.3KW | 4.6K |
Please contact with us for your best clean room solutions.
