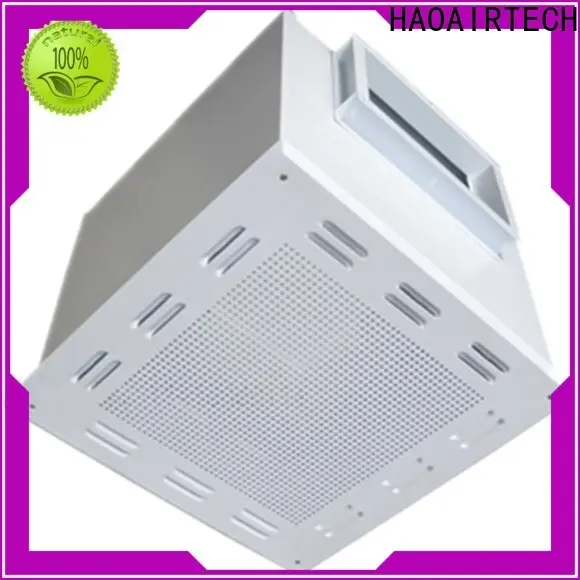

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 1

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 2

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 3

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 4

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 5

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 6

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 7

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 8

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms

Brand:

HAOAIRTECH

Model number:

HA-HU

Material:

Steel with power coated

OEM /ODM:

OEM

Certificated:

SGS report for the hepa filter

Start port:

Huang PU,Guangzhou

Delivery time:

7 Working days

MOQ:

10 sets

Country of Original:

China

Supply ability:

1000pcs/ 15days

Payment term:

T/T , LC. Western Union

Application:

Cleanroom Ceiling

Inquiry

Product Features

Cleanroom Terminal filtration unit.

Compact with central air-conditioning.

Mini-pleats HEPA air filter efficiency 99.99%@0.3um

Steel with milk powder coated cabinet

Suitable for use in cleanliness class 10000-300000 cleanroom.

Airflow distribution is uniform, with airflow diffusion mesh inside

Guarantee the air speed of airflow and prevent the generation of eddy current.

Expansion is convenient and can be arranged according to cleanliness grade or quantity of heat dissipation, Compact structure , reliable sealing performance.

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 9

Introduction

The HEPA air filter unit box is used as the terminal filter device fixed in class1000-300000 clean rooms ceiling. The difference between FFU and HEPA Unit is that the efficient air supply outlet has no motor power and needs to rely on the central air conditioning system to supply air to achieve indoor air circulation

It is the key equipment to meet the purification requirements.

/ Products Parameter

Model		Install size	Filter size	Flange size	Air flow
Tube on top	Tube on side	(BXAXH)mm	(H13)	(mm)	M3/h
HAC320D	KLCAC320C	390x390x380	320X320X96	200x200/￠300	500
HAC484D	KLCAC484C	554x554x380	484X484X96	200x320/￠300	1000
HAC680D	KLCAC680C	680x680x380	610X610X96	200x400/￠300	1500
HAC985D	KLCAC985C	680x985x380	610X915X96	200x500/￠300	2000
HAC1290D	KLCAC1290C	680x1290x380	610x1220x96	300x500/￠300	3000

Customer size is availble.

/ Specification

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 10

Illustration :

1: Flange 2: Ring 3: HEPA filter 4: Diffuser

/ Product Details

part.1

Light weight, High efficiency, Beautiful appearance.

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 11

part.2

The diffuser material can be stainless steel or steel with powder coated.

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 12

part.3

Hepa Filter Unit Box as cleanroom finally air filtration equipment, It including the plenum chamber，HEPA air filter, flanger , diffuer plate .

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 13

Application

It is suitable for non-uniform clean rooms of various grades and roof structures.Its main purpose is to filter the terminal air of air supply system of air conditioning box in clean rooms.

It can also be directly installed on the ceiling of the clean room as a terminal filter device, which can be used to renovate or build the terminal air filter equipment of 1000, 10000, 100000

and all levels of clean rooms to meet the purification requirements of the key equipment

/ Certificated

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 14

/ Our Service

HAOAIRTECH hepa filter module with central air conditioning for for non uniform clean rooms 15

Our Service

1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
