We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH hepa filter module units for cleanroom ceiling 1
HAOAIRTECH hepa filter module units for cleanroom ceiling 2
HAOAIRTECH hepa filter module units for cleanroom ceiling 3
HAOAIRTECH hepa filter module units for cleanroom ceiling 4
HAOAIRTECH hepa filter module units for cleanroom ceiling 5
HAOAIRTECH hepa filter module units for cleanroom ceiling 6
HAOAIRTECH hepa filter module units for cleanroom ceiling 7
HAOAIRTECH hepa filter module units for cleanroom ceiling 1
HAOAIRTECH hepa filter module units for cleanroom ceiling 2
HAOAIRTECH hepa filter module units for cleanroom ceiling 3
HAOAIRTECH hepa filter module units for cleanroom ceiling 4
HAOAIRTECH hepa filter module units for cleanroom ceiling 5
HAOAIRTECH hepa filter module units for cleanroom ceiling 6
HAOAIRTECH hepa filter module units for cleanroom ceiling 7

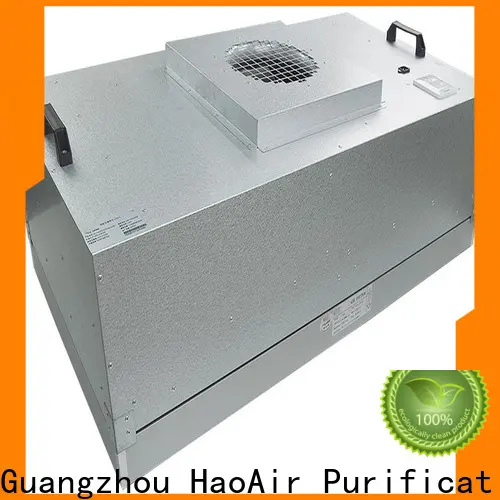

HAOAIRTECH hepa filter module units for cleanroom ceiling

Brand:
Haoairtech
Model number:
HA-HCB
Material:
Galvanized frame(T=1.0mm)
OEM /ODM:
OEM
Certificated:
CE
Start port:
Guangzhou huangpu
Delivery time:
7 working days
MOQ:
5 Sets
Country of Original:
china
Supply ability:
1000pcs/month
Payment term:
T/T. LC
Application:
Cleanroom
Inquiry
Company Advantages
1. In creating the design of HAOAIRTECH hepa filter fan , many elements are taken into account. These elements are the arrangement of lines, shapes, colors, and texture. The product assures an extremely high-efficient manufacturing process
2. It is becoming increasingly widely applied in the fields. The product focuses on the good physical conditions of the workers in the workshop
3. The product is resistant to fading. Its materials have been tested under normal washing, dry cleaning, perspiration, and chlorinated water to check colorfastness. It is certified by SGS corporation and reaches RoHS standard



Product Features

Low running irrigation surface power consumption,

Cost reduction and microcomputer control

maintenance-free can adjust the wind speed with the increase of

resistance to maintain the air balance.

Suitable for use in cleanliness class Class1-1000 cleanroom.


,


HAOAIRTECH hepa filter module units for cleanroom ceiling 8


Introduction

Fan filter unit is a ceiling HEPA unit with internal fan. It is used in turbulent flow and laminar flow clean room. The design of the unit is flexible. According to the design specifications,

It can easily cooperate with any ceiling skeleton to meet the requirements of clean grade 1000 to 10. Fan filter unit is one of the most quiet and well priced units in the clean market at present.

With this unit, high quality air can be transported to the clean room. And the air manifold is good,


/ Products Parameter



 MODEL

  HA-FFU920

HA-FFU1175

HA-FFU1225

External size (mm)

(WXDXH)

920x615x350

1175x575x350

1225X615X350

 Material

Steel   plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

 800

1000

1200

Air   velocity (m/s)

  0.3/0.35/0.4/0.45/0.5

Pressure(pa)

    97(10mmAq)





HEPA   FILTER

Size(mm)

 915X610X69mm

1170x570x69mm

1220x610x69mm

Efficiency(%)

 99.995%@0.3um

Frame

Aluminum in good quality

Pressure   (pa)

<220pa@0.45m/s

characteristics

Choose patent no-gap   technology to make PU gasket

 motor

Power   supply

     220V/50HZ

Type

Aluminum   turbine motor

Vibration   (mm/s)

Vibration   quotiety  0.2-0.5m/s

Power (w)

123w

123w

172w

Weight (kg)

24kg

28kg

31kg

     Noise (Db)

57

57

      8

 Customer size is availble.


/ Specification


HAOAIRTECH hepa filter module units for cleanroom ceiling 9


 Illustration :    1: plastic handle    2: fan    3: hepa filter    4: per-filter    5: control panel    6: power cable .


/ Product Details



part.1

Light weight, corrosion resistance, beautiful appearance.

HAOAIRTECH hepa filter module units for cleanroom ceiling 10

part.2

It can easily match all kinds of high efficiency filters and HEPA or ULPA.

HAOAIRTECH hepa filter module units for cleanroom ceiling 11

part.3
Fan filter unit adopts direct-drive high-efficiency centrifugal fan with long life, low noise and small vibration.
HAOAIRTECH hepa filter module units for cleanroom ceiling 12


Application

It is suitable for semiconductor, electronics, flat panel displays and disk drives manufacturers and optical, biological industries, such as clean rooms, clean workbenches, clean production lines, assembly Cleanrooms and local 100-level cleanroom and other places with strict control of air pollution requirements of low energy consumption. reduce operating costs.


Fan Filter Unit Control System :

HAOAIRTECH hepa filter module units for cleanroom ceiling 13



/ Certificated

HAOAIRTECH hepa filter module units for cleanroom ceiling 14





/ Our Service


HAOAIRTECH hepa filter module units for cleanroom ceiling 15

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
