We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 1
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 2
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 3
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 4
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 5
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 6
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 7
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 8
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 1
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 2
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 3
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 4
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 5
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 6
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 7
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 8

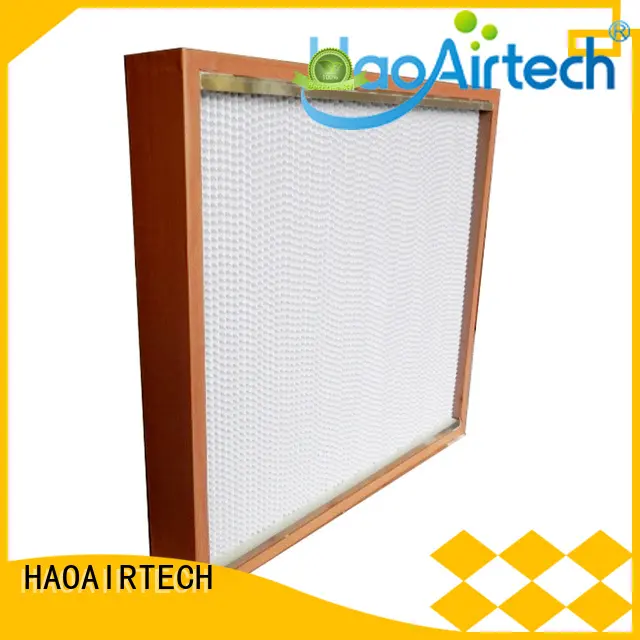

HAOAIRTECH hepa filter h12 with al clapboard for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPA-P Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
500set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Application Scope
air showers developed and produced by HaoAir is mainly applied to the following aspects.HaoAir is committed to providing customers with high-quality best hepa filters as well as one-stop, comprehensive and efficient solutions.
  • HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 9
Company Advantages
1. The practical design of HAOAIRTECH industrial hepa filter caters the taste of customers.
2. The product has a long operation life and can be held up for a long time. Thus, it is proved that this quality product has won high recognition in the market for its durability.
3. HAOAIRTECH believes through the professional service, our customers can save their time and energy enjoying the best hepa filter h12 .
4. Guangzhou HaoAir Purification Technology Co.,Ltd.'s perfect quality control system ensures that customers' needs are fully met.



Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 10


Introduce

Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.



/ Operating Conditions


 Media

Super glass fibre

 Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media    spacer

Hot melt

Frame thickness    (mm)

120/150/220

Clapboard

120g/m paper

Efficiency

99.99%-99.999%@0.3um

Max    Temperature

80℃

Max    Humidity

80%



/ Products Parameter


Dimension(mm)
     (W*H*D)

Rate    Air
Flow
(m3/h)

Media  Area
(m2)

Dust  Holding
(g)

Rate primary
Resistance(Pa)
(H13-H14)

 Finally
Resistance   (Pa)

484X484X120

450

4.4

230





220Pa





400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 11



/ Product Details



part.1
HEPA air filter With Paper Clapboard
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 12

part.2
Paper clapboard separate the media
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 13



/ package


HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 14
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 15
HAOAIRTECH hepa filter h12 with al clapboard for electronic industry 16




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. produces high-end hepa filter h12 with great attention to detail and quality.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. always has high demand on quality of ulpa filter .
3. We continually strive to preserve our values and improve training and knowledge, with the aim of strengthening our position of leadership in this industry and our relationship with clients and partners. Get info! Quality and service are always seen as key factors in HAOAIRTECH's long-term development. Get info! Guangzhou HaoAir Purification Technology Co.,Ltd. constantly highlight the need for high-quality support. Get info!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
