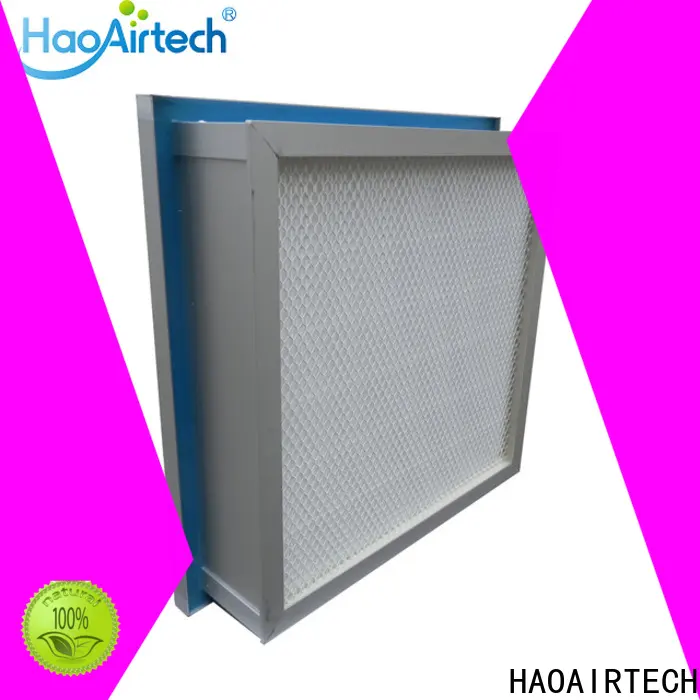

HAOAIRTECH h13 hepa filter with big air volume for electronic industry

Company Advantages
1. The production technology of HAOAIRTECH carbon air filter is comparatively mature in the industry. The product features an energy-saving performance
2. For an eco-conscious lifestyle that’s affordable, fun, and a great alternative to traditional home-ownership, this product is a great choice. It is certified by SGS corporation and reaches RoHS standard
3. The product is sturdy in construction. Its frame is made of metal or plastic materials that are resistant to impacts, protecting internal circuits from shocks. The product can increase the rate of finished products
4. It will not prone to deform under high temperature. Its metal structure is strong enough and the materials used have excellent creeping strength. The product will greatly improve the quality of factory-made products
5. It features strong anti-corrosion performance. The housing is made of non-corrosive materials which are not susceptible to chemical liquids, oils, or moisture. Automatic operation is the highlight of the product

Hospital Gel Sealant HEPA Filter

Features:
1. Light weight, economic cost
2. Disposable products, environmentally.
3. Low resistance, large filter area and air volume
4. Cardboard frame with special process, with long working time.
5. Thickness available:69mm, 93mm, 96mm,etc.

Introduce :

       Common Applications: Filtering 0.3 microns or less suspended particles in the air, it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher

                                          degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.

           Features:  Adopting the superfine fiberglass filter paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by top quantity gel seal,

                              aluminum alloy frame with combined spray protection network both in the outlet and inlet side to protect filter paper. Low loss, high efficiency, light weight,

                              it is tested precisely one by one.
                            Frame: Aluminum

                           Temperature resistance: 80 ℃

Products Parameter：

Cabinet size    (mm) (W*H*D)	Rate Air Flow   (m3/h)	Media Area    (m2)	Dust Holding    (g)	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)	Efficiency
510X510X69	600	6.6	400	<200pa	400-600pa	H13-H14
636X636X69	1000	10.7	650
596X1196X69	1800	18.3	1100
636X1236X69	2100	21.3	1000
346X346X93	400	4.2	250
510X510X93	900	9.42	565
636X636X93	1500	14.9	900
636X941X93	2000	22.3	1200
626X1226X93	2800	29.8	1800
621X621X93	1380	14.19	851
636X1246X93	2800	29.8	1800
596X1196X93	2550	26.28	1577
656X994X93	2350	24.15	1449
350X350X96	500	4.68	300
514X514X96	1000	10.62	650
640X640X96	1500	16.8	1000



Company Features
1. To ensure quality of h13 hepa filter , Guangzhou HaoAir Purification Technology Co.,Ltd. introduced a full set of quality control system.
2. HAOAIRTECH intends to be a global air filter hepa exporter. Get price!
