Company Advantages1. Unlike traditional products, the defects of HAOAIRTECH
air filter machine are eliminated during production. With premium quality, the product is also fit for working under difficult operating conditions
2. The product plays an important role and has been deeply trusted by our customers. The product creates a high cleanliness working environment
3. The product does not retain any odor. Its ventilated design ensures the maximum airflow to remove any smell in the feet. The product is reputed for its long service life
4. The product is known for its shock absorption. It can absorb the stress or impact on the feet, hence to offer a certain buffering effect. It acts as an indispensable part in a dustfree production line
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance(Pa) (H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 | 220Pa | 400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH h12 hepa filter with dop port for air cleaner 10]()
/ Product Details
part.1

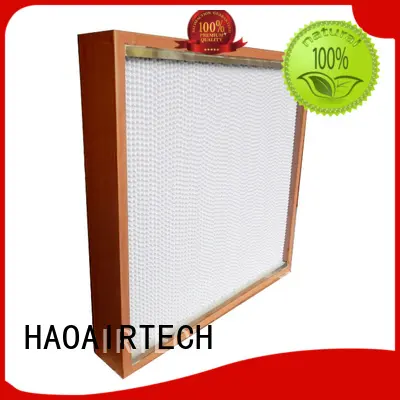

HEPA air filter With Paper Clapboard
part.2
Paper clapboard separate the media
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a leading producer of air filter machine in China. We have been producing and marketing the products continuously for many years both at home and abroad.
2. The high yield of h12 hepa filter proves that Guangzhou HaoAir Purification Technology Co.,Ltd. has solid technical capabilities.
3. Our goal is to constantly exceed our customer expectations. We aim to respond to their needs in an efficient manner and go beyond their needs.
