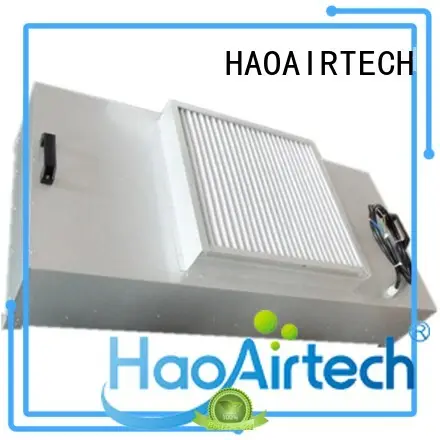

HAOAIRTECH filter fan unit with internal fan for for non uniform clean rooms

Company Advantages
1. filter fan unit Design: Simple, bright, economical and practical.
2. This product will not easily gather bacteria. The antibacterial agent is used into its fabric, and its antibacterial effect is up to 99%.
3. It has good thermal insulation. Its electric components and the housing are all fabricated with high-quality insulation materials which are effective in avoiding inadvertent contact.
4. One of the best reasons to use this product is because it enables people to make their own space out of nothing.

Characteristics

1.The direct-drive high-efficiency centrifugal fan has the advantages of low noise during operation, small vibration, and stepless speed regulation.
  The energy efficiency ratio is high and the heat generation is small, which further reduces the heat generation of the additional work area.
2.The cabinet and high-efficiency filter are designed in a split design, making installation and replacement more efficient and easier.
3.It is especially suitable for assembly into ultra-clean production lines, which can be arranged as a single unit according to the process requirements, or multiple lines of assembly lines with high cleanliness level.

Product drawings

1.plastic handle       2.Fan         3.HEPA filter      4.Pre-filter    5.control panel       6.power cable

Technical Parameter

Fan Filter Unit
Model		HA– FFU920	HA – FFU1175	HA – FFU1225
External size: (W*D*H)mm		920X615X350	1175X575X350	1225X615X350
Air Flow		900m3/h	1000m3/h	1200m3/h
Construction		Stainless steel 304/aluminum/galvanized steel/steel with power coated
Air Velocity		0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s
Control system		1. Power on/off 2. Control speed
Pressure (pa)		97 (10mm)Aq
Hepa Filter	Size(mm)	915X610X69	1170X570X69	1220X610X69
	Efficiency	99.99% @0.3um
	Pressure	180pa @0.45m/s
Power supply		220/110V 50/60HZ
Fan power		123W	123W	175W
Noise		52dB	52dB	52dB

Notes
1.To prevent motor overheating the installation of protective devices is recommended.
2.Special size available upon request.
3.Filter can be HEPA or ULPA .
4.Motor has overheat circuit protection
5.Control Box can be hand-controlled or computer program system control
6.Height in above specification doesn’t include filter

FFU production

Company Features
1. With the help of brand popularity for HAOAIRTECH, Guangzhou HaoAir Purification Technology Co.,Ltd. wins wider and wider filter fan unit market.
2. Our hepa filter module are designed to target specific laminar flow ceiling.
3. We will continue to develop a variety of new fan filter unit products. Get an offer! The kind of finest hepa filter box and professional service shown in HAOAIRTECH fully manifests the uniqueness of our company culture. Get an offer! HAOAIRTECH's plan is to be an internationally famous HEPA Filter Module supplier. Get an offer!
