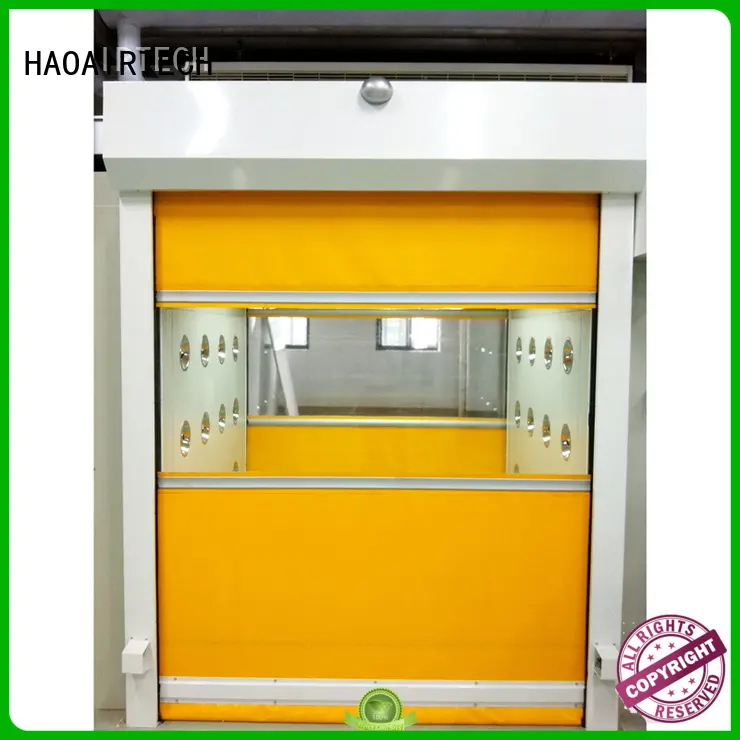

HAOAIRTECH fast rolling clean room manufacturers with top side air flow for ten person
1. The design of HAOAIRTECH lab air shower is professionally done. It is the outcome of the art of decoration and science which shows harmonious unification of the kitchen. The product is widely used for high-end clean rooms of various manufacturers
2. This product perfectly meets the actual requirements of customers and has great market potential. The product comes with 1-2 years of warranty period
3. This product has an outstanding quality that exceeds industry standards.
4. Strict quality control: the product is of high quality, which is a result of strict quality control in the whole process. The responsive QC team takes full charge of its quality. It highly conforms to the dustless workshop management standard
5. Strict quality standards have been set during the inspection process to ensure high quality products. The product is reputed for its long service life
External Material: Steel with power coated (T=1.0)
Inside Material: Stainless steel304 (t=1.0)
External size:2300*2000*2280mm
Internal size: 1500*2000*1980mm
Sus nozzle: 36pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS2300P2 | HA-AS2300P3 | |||
External size (mm) | 2300x2000x2280mm | 2300x3000x2280mm | |||
Work zone (mm) | 1500x2000x1980mm | 1500x3000x1980mm | |||
Persons per cycle | One Small Cargo forklift. | One big Cargo forklift. | |||
Material （Option） | 1:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | ||||
Control system | 1: Control system with LED display for the shower time. | ||||
Door | Automatic High Speed Rolling Door | ||||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |||
Air flow of fan(m3/h) | 1500 | 1500 | |||
Fan run (r/min) | 2800 | 2800 | |||
Nozzle in stain less steel | 36 pcs | 54 pcs | |||
Wind speed(m/s) | >25m/s | ||||
Noise level(dB) | <75dB | ||||
HEPA FILTER | Size(mm) | 630X630X80mm(4 sets) | 630X630X80mm(6 sets) | ||
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||||
Air velocity | 1000(m3/h) | ||||
Initial resistance(pa) | <180pa | ||||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 | |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | ||
G3 | G3 | G3 | |||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | ||
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P | |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | ||
Illustrate
1: Fast shutter motor 2:Air shower control board 3:SUS Nozzle 4: Infrared Ray Indicator 5A/B:Sensor for door open 6: PVC Rolling Door 7:Big air volume motor 8: HEPA air filter(H13 99.995%@0.3um) 9: per-filter 10A/B: Sensor for door closer 11: Purification Light
Application
widely used in food, chemistry, textile, electronics, supermarkets, refrigeration, logistics, warehousing and many other places.
Introduc
The application of the fast rolling curtain door in the cargo shower room:
The high speed rolling shutter door that is runs faster than 0.6 meters per second.
It is a fast lifting and barrier free isolation door. The most important performance is fast isolation so as to ensure the clean quality of workshop air quality. It has many Characteristic such as heat preservation, cold keeping, insect protection, windproof, dustproof, sound insulation, fire prevention, odor prevention, day lighting and so on .
High performance of logistics and air clean purification places, and save energy, high speed automatic closure, improve work efficiency, create a better environment and other advantages.
Because of the above advantages of the fast rolling shutter door already use for cargo air shower ,the curtain door has been applied to the top of the shower room.
By using it, it is very suitable for the demand of the shower room operation. The use of the staff is very convenient, the security and the stability of the operation are very good.
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
