We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 1
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 2
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 3
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 4
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 1
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 2
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 3
HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 4

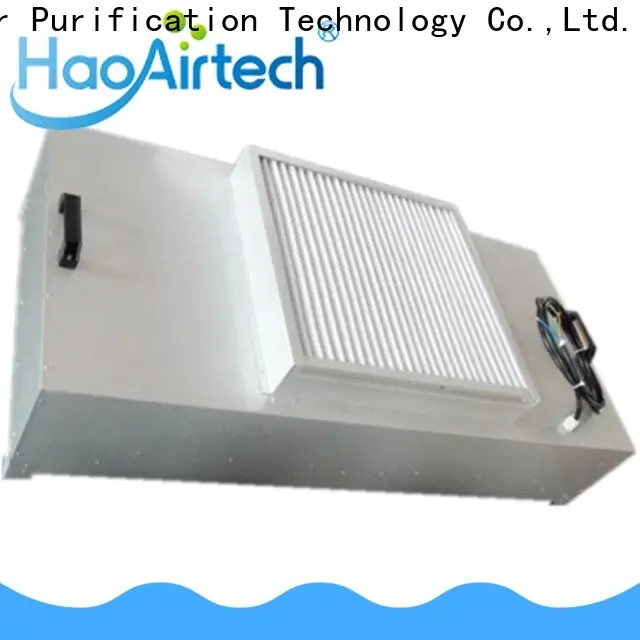

HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms

Brand:
HAOAIR TECH
Model number:
HA – FFU Series
Material:
Stainless steel 304/aluminum/galvanized steel/steel with power coated
OEM /ODM:
OEM/ODM
Certificated:
CE,RoHS
Start port:
Guangzhou, Shenzhen, China port
Delivery time:
7-12 working days
MOQ:
1 unit
Country of Original:
China
Supply ability:
700-1000 units
Payment term:
T/T, L/C, D/P,D/A,Western Union
Application:
Pharmacy Industry, Food Factory, Semi-conductor workshop,HAVC System,Cleanroom
Inquiry

Characteristics

1.The direct-drive high-efficiency centrifugal fan has the advantages of low noise during operation, small vibration, and stepless speed regulation.
  The energy efficiency ratio is high and the heat generation is small, which further reduces the heat generation of the additional work area.
2.The cabinet and high-efficiency filter are designed in a split design, making installation and replacement more efficient and easier.
3.It is especially suitable for assembly into ultra-clean production lines, which can be arranged as a single unit according to the process requirements, or multiple lines of assembly lines with high cleanliness level.

HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 5

Product drawings

HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 6


1.plastic handle       2.Fan         3.HEPA filter      4.Pre-filter    5.control panel       6.power cable


Technical Parameter


Fan Filter Unit

Model

HA– FFU920

HA – FFU1175

HA – FFU1225

External size:
(W*D*H)mm

920X615X350

1175X575X350

1225X615X350

Air Flow

900m3/h

1000m3/h

1200m3/h

Construction

Stainless steel 304/aluminum/galvanized steel/steel with power coated

Air Velocity

0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s

Control system

1. Power on/off 2. Control speed

Pressure (pa)

97 (10mm)Aq

Hepa
Filter

Size(mm)

915X610X69

1170X570X69

1220X610X69

Efficiency

99.99% @0.3um

Pressure

180pa @0.45m/s

Power supply

220/110V 50/60HZ

Fan power

123W

123W

175W

Noise

52dB

52dB

52dB

Notes
1.To prevent motor overheating the installation of protective devices is recommended.
2.Special size available upon request.
3.Filter can be HEPA or ULPA .
4.Motor has overheat circuit protection
5.Control Box can be hand-controlled or computer program system control
6.Height in above specification doesn’t include filter

FFU production

HAOAIRTECH fan hepa filter module with internal fan for for non uniform clean rooms 7



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
