We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

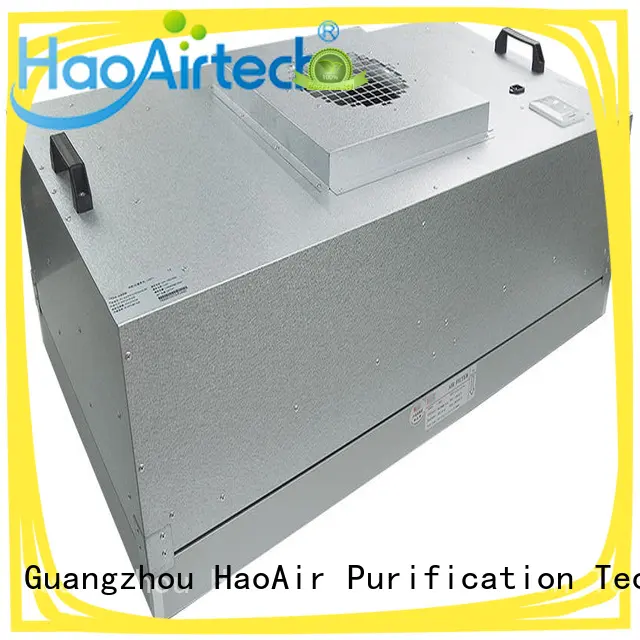

HAOAIRTECH fan hepa filter box with central air conditioning for cleanroom ceiling
-
v s
1. When it is polished, HAOAIRTECH hepa filter box adopts imported auto-polishing machines. These machines are able to achieve planish, kibble and fine-polishing of this product.
2. The product features high-efficiency thermal management. The heat produced by it has been effectively absorbed into heat dissipation components.
3. As an experienced manufacturer, Guangzhou HaoAir Purification Technology Co.,Ltd. has always been committed to improving quality of hepa filter box .
4. Guangzhou HaoAir Purification Technology Co.,Ltd. believes that our products can have a place in the world.
Low running irrigation surface power consumption,
Cost reduction and microcomputer control
maintenance-free can adjust the wind speed with the increase of
resistance to maintain the air balance.
Suitable for use in cleanliness class Class1-1000 cleanroom.
,
Introduction
Fan filter unit is a ceiling HEPA unit with internal fan. It is used in turbulent flow and laminar flow clean room. The design of the unit is flexible. According to the design specifications,
It can easily cooperate with any ceiling skeleton to meet the requirements of clean grade 1000 to 10. Fan filter unit is one of the most quiet and well priced units in the clean market at present.
With this unit, high quality air can be transported to the clean room. And the air manifold is good,
HA-FFU920 | HA-FFU1175 | HA-FFU1225 | ||
External size (mm) (WXDXH) | 920x615x350 | 1175x575x350 | 1225X615X350 | |
Material | Steel plate with painting/galvanized steel/aluminum/stainless steel | |||
Air flow(m3/h) | 800 | 1000 | 1200 | |
Air velocity (m/s) | 0.3/0.35/0.4/0.45/0.5 | |||
Pressure(pa) | 97(10mmAq) | |||
HEPA FILTER | Size(mm) | 915X610X69mm | 1170x570x69mm | 1220x610x69mm |
Efficiency(%) | 99.995%@0.3um | |||
Frame | Aluminum in good quality | |||
Pressure (pa) | <220pa@0.45m/s | |||
characteristics | Choose patent no-gap technology to make PU gasket | |||
motor | Power supply | 220V/50HZ | ||
Type | Aluminum turbine motor | |||
Vibration (mm/s) | Vibration quotiety 0.2-0.5m/s | |||
Power (w) | 123w | 123w | 172w | |
Weight (kg) | 24kg | 28kg | 31kg | |
Noise (Db) | 57 | 57 | 8 | |
Customer size is availble.
Illustration : 1: plastic handle 2: fan 3: hepa filter 4: per-filter 5: control panel 6: power cable .
Light weight, corrosion resistance, beautiful appearance.
It can easily match all kinds of high efficiency filters and HEPA or ULPA.
Application
It is suitable for semiconductor, electronics, flat panel displays and disk drives manufacturers and optical, biological industries, such as clean rooms, clean workbenches, clean production lines, assembly Cleanrooms and local 100-level cleanroom and other places with strict control of air pollution requirements of low energy consumption. reduce operating costs.
Fan Filter Unit Control System :
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. As a developing company, Guangzhou HaoAir Purification Technology Co.,Ltd. has been developing into manufacturing hepa filter box .
2. Our company has an excellent sales team. They are well educated and continue to learn about our products to enable diverse projects from customers worldwide.
3. We are committed to improving the customer service level. We encourage and cultivate the customer service team to work hard to give customers the best compelling experience possible and real-time response as well. Our mission is that the company will be a model of excellence in meeting social commitments, health, safety, and environmental norms.
