HAOAIRTECH fan filter fan unit with central air conditioning for for non uniform clean rooms

Company Advantages
1. While manufacturing HAOAIRTECH laminar flow ceiling, only top-grade materials are adopted in the production. Made of stainless steel SUS304, it is beautiful and durable
2. The markets of Guangzhou HaoAir Purification Technology Co.,Ltd. are expanded to many countries and regions around the world. With premium quality, the product is also fit for working under difficult operating conditions
3. The product is safe to operate. It produces no harmful and dangerous effects such as electric current, electric arc, electromagnetic field, and static electricity. The product creates a clean environment to reduce allergy and asthma symptoms
4. The product will not accumulate bacteria and dust. The small pores of the fibers have high filtration for the small particles or impurities. Automatic operation is the highlight of the product
5. It ensures HD visuals. It boasts a proper gain of reflectivity, providing the widest possible viewer angles with perfect diffusion uniformity. It highly conforms to the dustless workshop management standard

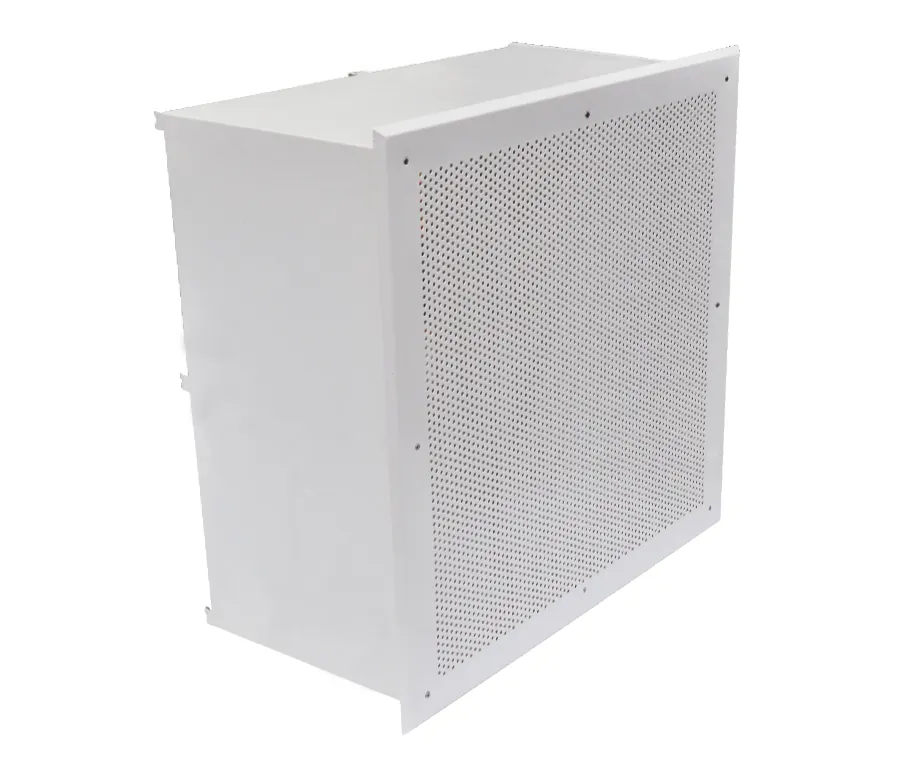

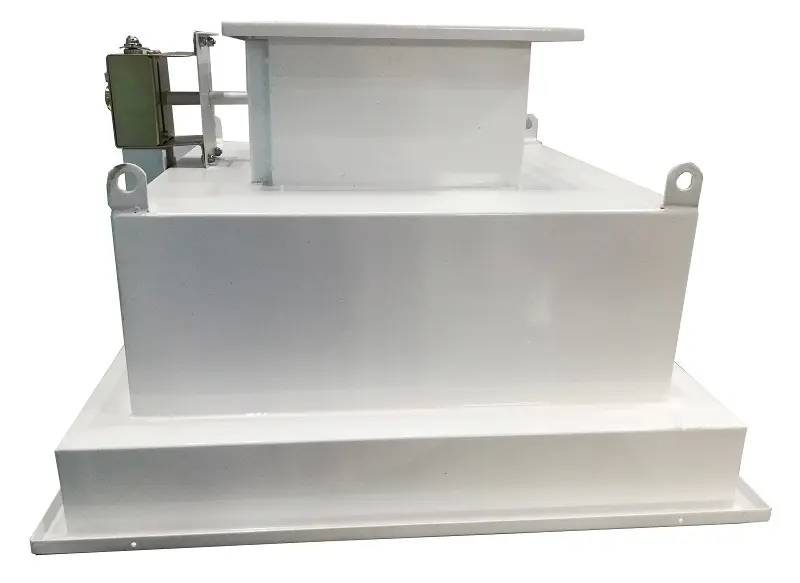

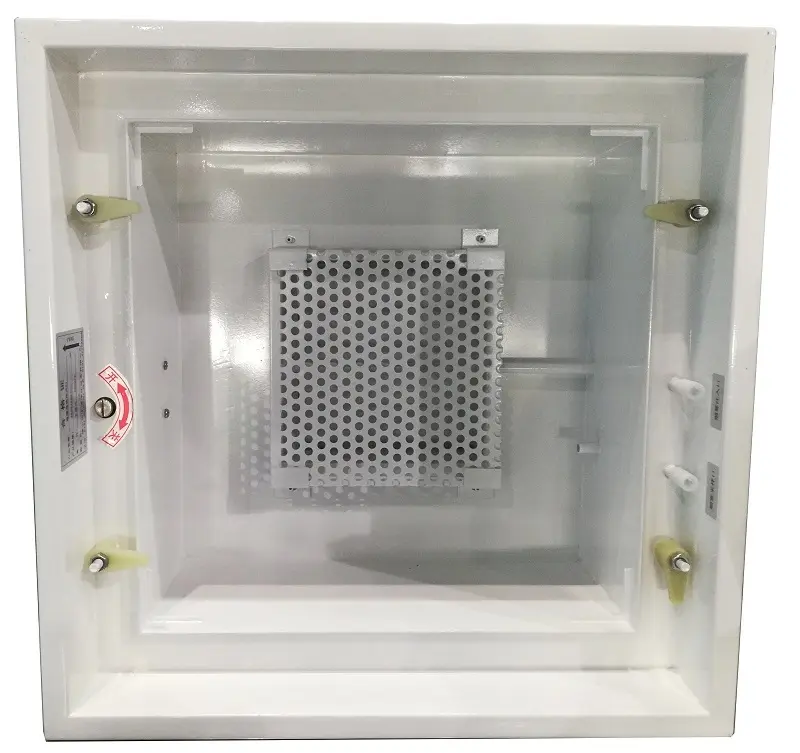

The HEPA air filter unit box is used as the terminal filter device fixed in class1000-300000 clean rooms ceiling. The difference between FFU and HEPA Unit is that the efficient air supply outlet has no motor power and needs to rely on the central air conditioning system to supply air to achieve indoor air circulation

It is the key equipment to meet the purification requirements.





Model		Install   size	Filter   size	Flange   size	Air   flow
Tube   on top	Tube on   side	(BXAXH)mm	(H13)	(mm)	M3/h
HAC320D	KLCAC320C	390x390x380	320X320X96	200x200/￠300	500
HAC484D	KLCAC484C	554x554x380	484X484X96	200x320/￠300	1000
HAC680D	KLCAC680C	680x680x380	610X610X96	200x400/￠300	1500
HAC985D	KLCAC985C	680x985x380	610X915X96	200x500/￠300	2000
HAC1290D	KLCAC1290C	680x1290x380	610x1220x96	300x500/￠300	3000

 Customer size is availble.

 Illustration :

 1: Flange     2: Ring     3: Air duct diffuser     4: DOP/PAO Test port  5: HEPA filter  6 :gel-sealant glue    7: Diffuser Plate

       It is suitable for non-uniform clean rooms of various grades and roof structures.Its main purpose is to filter the terminal air of air supply system of air conditioning box in clean rooms.

 It can also be directly installed on the ceiling of the clean room as a terminal filter device, which can be used to renovate or build the terminal air filter equipment of 1000, 10000, 100000

 and all levels of clean rooms to meet the purification requirements of the key equipment



/ Certificated

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. provides customers a variety of filter fan unit .
2. Our strength lies in having flexible facilities and production lines. They run smoothly under scientific management systems, meeting the needs of a range of manufacturing processes.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. firmly believes that excellence stems from long-term experience accumulation. Inquiry!
