HAOAIRTECH dynamic pass box with baked painting for hvac system
- To provide faster and better service, HaoAir constantly improves the service quality and promotes the service personnel level.
1. The design of dynamic pass box is specifically for dynamic pass box working principle .
2. This product is highly anti-static. It is not easy to build up static electricity when it is suffering friction or rubbing.
3. The product has good fabric strength. The advanced sewing and stitching techniques guarantee that the lines do not prone to break or fall apart.
4. The product can maximize space. Even it is applied in a small bathroom or washroom, its flexible design will make full use of every space available.

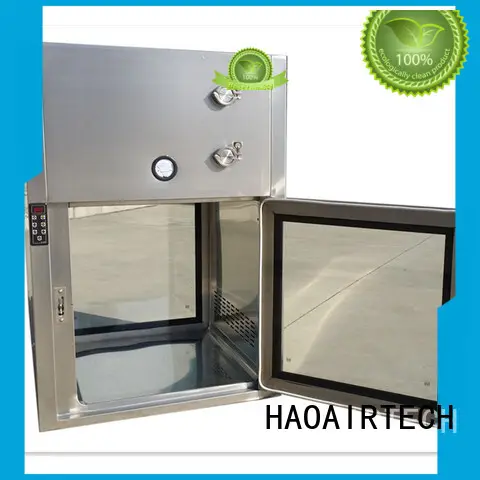

High Performance SUS304/SUS316 Clean Room Dynamic Pass Box
Dynamic Pass Box Introduction:
The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.
Dynamic Pass Box Features :
1.Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room.
2.It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp.
3.The construction material can be SUS or SGLC materials.
4.It is time saving and enables the convenient cargo transfer.
5.All the sizes can be customized.
The Dynamic Pass Box is approval by CE and RoHS certificate.
Customer’s design is available.
Clean Room Dynamic Pass Box Specification:
Clean Room Dynamic Pass Box HA-DPB Series | |||
Model | HA-DPB500 | HA-DPB600 | HA-DPB700 |
Outer Size(mm) (WXDXH) | 700x570x1050 | 800x670x1150 | 900x770x1250 |
Inner Size(mm)(WXDXH) | 500x500x500 | 600x600x600 | 700x700x700 |
Construction | 1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316. | ||
Air Velocity(m/s) | 0.45m/s (adjustable) | ||
HEPA Efficiency | 99.995%@0.3um | ||
HEPA Filter Type | Mini-pleats Gel Sealant HEPA Filter | ||
Test Port | External PAO/DOP test port | ||
Magnehelic | 1 set | ||
Inner bottom | Arc Shaped | ||
Interlock | Micro-computer interlock | ||
Power | 150W-350W, 220v/50Hz | ||
Clean Room Dynamic Pass Box Details:
Clean Room Dynamic Pass Box Application:
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has surpassed many other competitors in manufacturing dynamic pass box working principle . We are a renowned manufacturer with years of experience.
2. The company has advanced production technology and strict quality management system.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will never be content with good quality and make a big stride towards top quality. Get info! According to dynamic pass box validation , Guangzhou HaoAir Purification Technology Co.,Ltd. fully plays the motivation and leadership of dynamic pass box . Get info! HAOAIRTECH puts pass box manufacturers first all the time. Get info!
