HAOAIRTECH custom hepa filter with flanger for electronic industry

Company Advantages
1. The raw materials of HAOAIRTECH indoor air filter are meticulously selected to make sure each of them works perfectly, through which the quality of the product can be ensured from the source. It is certified by SGS corporation and reaches RoHS standard
2. With good word-of-mouth, the product is considered to have high or favorable market prospects. The product's rigid frame forestalls shrinking or bending
3. Our high standard quality management system guarantees the product meets with the international standards. With the shell galvanized, the product is crack-resistant and wear-resistant
4. The product is tested at various stages of development. The product can maintain high air quality of the factory

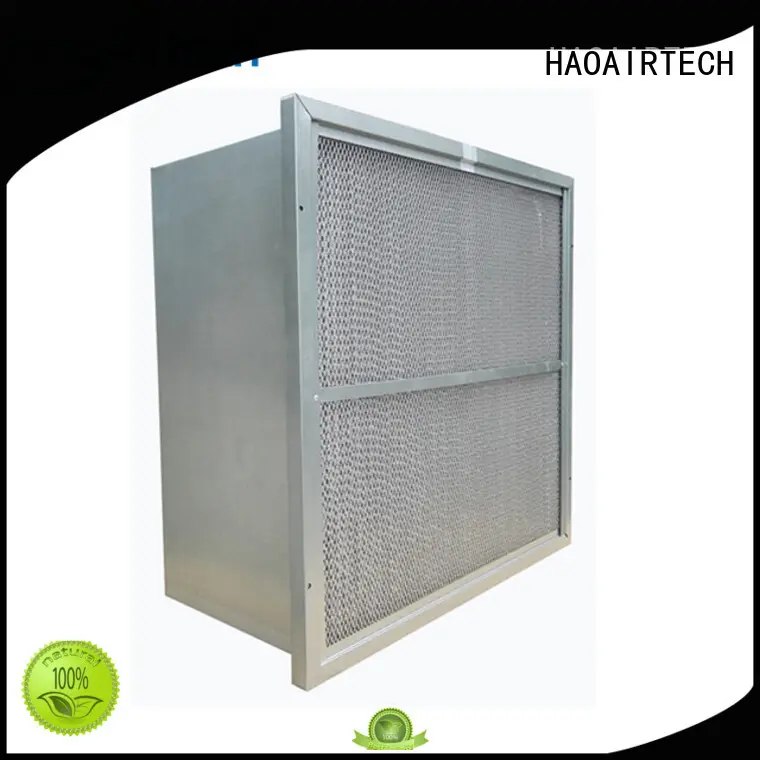

Hi-Temp HEPA Filter

    HEPA Filter M5-M6 and F7 EN 779 (HTRC5-8)

    HAOAIRTECH can supply and install the High Temperature HEPA Filter: Rigid Cell Filter

   The  Hi-Temp HEPA Filter from the  HVAC filters range, is designed for use in HVAC systems in high temperature environments.

    It offers superior performance over standard panel filters.

   This DeepPleat HEPA Filter is made up of galvanised aluminium and glass microfibre

    filter media that is laminated onto an expanded metal grid.

     Offering low pressure drop, they can be used for pre-filtration in addition to main filtration.

      The Hi-Temp HEPA filter is suited to temperatures up to 300°C, also for use up to 90% Relative Humidity (RH)

Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185







Introduce :

    HAOAIRTECH offers a comprehensive range of High Temperature Filters for use in specialist applications.

      High Temperature Filters are often installed downstream of heat reactivated adsorption compressed air dryers.

     With operating pressures up to 16 barg (232 psig) and a maximum operating temperature of 250˚C (482˚F),

     these filters are ideal to protect processes and equipment from dust where the temperature of the compressed air exceeds 120°C (248°F).

   Applications that require High Temperature Filters are not only restricted to Desiccant Dryer installations.

    Where high efficiency compressed air and gas filters are needed to operate within such demanding conditions,

   we can assist in ensuring the correct selection and installation of filters for efficiency ratings of 5, 1, and 0.01 micron

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd., focusing on the production and research and development of custom hepa filter , has a good reputation at home and abroad.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has advanced and competitive air filter hepa crafts and techniques.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. always clings to long-term development by providing customers with superior ulpa air filter . Contact!
