HAOAIRTECH coldrolled steel dynamic pass box with conveyor line for cargo

Company Advantages
1. HAOAIRTECH pass box controller is manufactured in line with electrical safety standards. These standards include CB standards, CCC standards, CCA standards, LOVAG standards, etc.
2. The product has many festures. Useing unique modern technology and synthetic materials, it features dust-, water- and fog- resistant.
3. With this product, there will be no more sweats and chills which keep one tossing and turning throughout the night.
4. This product is wonderfully soft, smooth and luxurious, for even the most sensitive skins. So people will like it if they enjoy these feels.

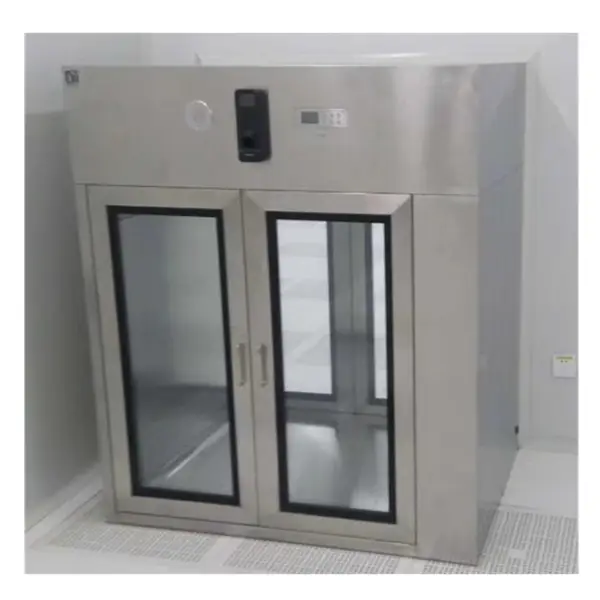

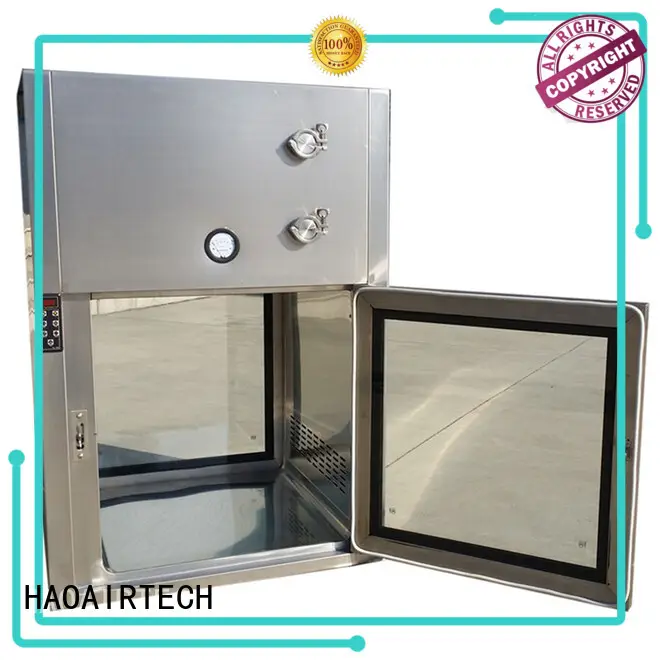

SS316 Dynamic Pass Box

Product Characteristic :

      SS316 Dynamic Pass Box is designed to allow material transfer through controlled environment without much personnel movement to minimize man /

material movement & avoid cross contamination between different classified areas. This is essentially installed to minimize movement of personnel

for transfer of material into and from the clean room. It aids to achieve desired classification, maintain integrity of products, process & controls ingress

of particulate contaminants into clean room & between different classified areas. Our range of Dynamic pass boxes is available in various specifications

as per the client’s requirements.Dynamic Pass Box is with a variety of standard dimensions also our pass boxes can be custom engineered to any size.

Dynamic pass boxes available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.

Optional Accessories:

 1: U.V. Light with Hour MeterElectro-Magnetic

  2: Mechanical InterlockingSS 316 removable grills on side walls for return air Floor mounted

 3: construction with three side wall structure

 4: Door Drop SealAudio Visual Alarm indicating condition of HEPA FiltersClean

 5: down timer with operation hold indicatorVFD based control systemsPhotohelic guage

 6:  Digital pressure gauge to monitor of pressure drop across filterFlame Proof Fitting

SS316 Dynamic Pass Box Products Parameter:

MODEL	HA-DPB500
External size (mm) (W*D*H)	700x570x1050mm
Work zone (mm) (W*D*H)	500x500x500mm
Purification rank	Class 100
Material  （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system	1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation .  3: Double layer vacuum glass have very good appearance  4: Software computer interlocking door with long time using life  5: Air speed is 0.45m/s adjustable
UV light	1 PCS
Power supply	220v/50HZ
packing size (mm)	800x870x1300mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Company Features
1. The high reputation of Guangzhou HaoAir Purification Technology Co.,Ltd. proves that it has solid and mature manufacturing and technical capabilities in dynamic pass box industry.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has a considerable manufacturing capacity with dozens of sets of cleanroom pass box processing equipment.
3. We bear social responsibilities. By linking our economic principles with an environmental approach we not only contribute actively to protecting the climate but also create measurable added value for our company. We achieve sustainable development by reducing production waste. We continuously seek to reuse and recycle by-products or convert them back into useful energy when recycling is not possible. We seek to forge mutually beneficial partnerships with our suppliers and to conduct responsible, ethical and sustainable business with them. We are doubling our effort in gearing toward green manufacturing. We streamline the production process that emphasizes the reduction of waste and less pollution.
