We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

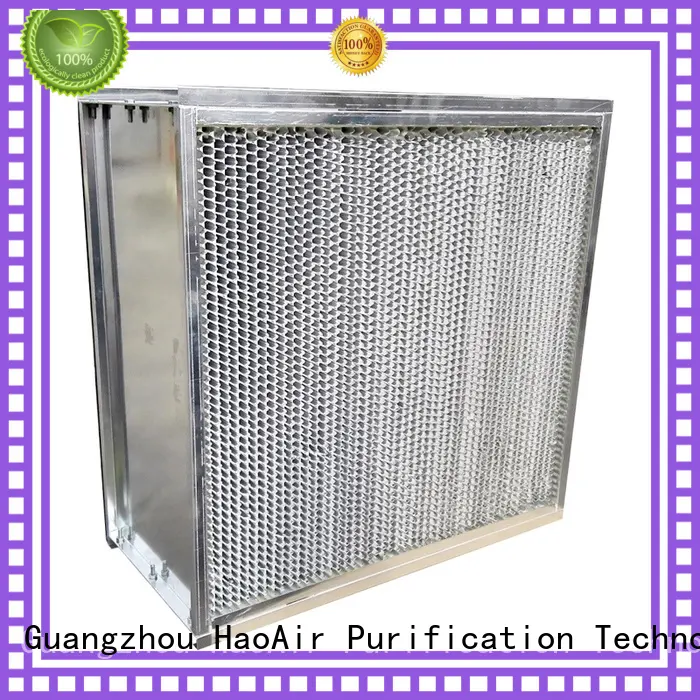

HAOAIRTECH Brand seal hepa filter manufacturers filter factory

Brand:

HAOAIRTECH

Model number:

HA-HEPA-A Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Product Advantage

's has excellent performances by virtue of the following excellent details.
is more competitive than other products in the same category, as shown in the following aspects.
's products have a wide range of types and styles. The following is the display of the main products of series.
Guangzhou HaoAir Purification Technology Co.,Ltd., located in , is a modern company. We are devoted to the business of .
The product will greatly improve the quality of factory-made products. . With the ,it's unnecessary for you to worry about quality problem.
Since the establishment, has maintained a rapid development trend and has obtained the following honor qualifications in a short period of time.
has a wide range of applications.
has a backbone team with rich experience and strong ability, which lays a solid foundation of rapid corporate development.

Product Comparison

Compared with similar products, 's is more advantageous in the following aspects.

Application Scope

's is widely used and can be applied to all walks of life. has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Company Advantages
1. Made of stainless steel SUS304, it is beautiful and durable. HaoAir Purification 's latest best hepa air filter combines design versatility with outstanding performance.
2. With the shell galvanized, the product is crack-resistant and wear-resistant. We have carved a niche in the industry by manufacturing and supplying a wide gamut of hvac hepa filter.
3. The product is widely used for high-end clean rooms of various manufacturers. Usually used to create hepa filter for cleanroom.
4. It has low noise and high mobility, HAOAIRTECH Is One Of The Leading hepa filter manufacturers Factories.
5. The Customer Focus Team is how we structure the services that Guangzhou HaoAir Purification Technology Co.,Ltd. offers to our customers. The product assures an extremely high-efficient manufacturing process
6. HAOAIRTECH hepa air filter is fully compliant with hepa room filter. The product can maintain high air quality of the factory.
7. We use latest printing technology to make our printed products outstanding and adorable in market. Automatic operation is the highlight of the product
8. Guangzhou HaoAir Purification Technology Co.,Ltd. offers the flexibility to order low quantities to meet exact requirements. A sample of the product can be offered for the confirmation of quality.
9. We offer quality range of custom hepa filter. In our endeavor to provide the highest level of quality to our clients, we ensure that we use the best of raw materials, technology, equipments and personnel across the group. It is certified by SGS corporation and reaches RoHS standard

Characteristics

The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um

/ Operating Conditions

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

/ Products Parameter

Dimension(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa)(H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

/ Primary Resistance & Face Velocity Diagram

HAOAIRTECH Brand seal hepa filter manufacturers filter factory 14

/ Product Details

part.1

EVA Gasket for Heap air filter with flange

part.2

Outwardly Frame for heap air filter

part.3

Deep Pleats Media Compact

/ package

Company Features
1. HAOAIRTECH now enjoys high recognition and much praise by customers at home and abroad. - Guangzhou HaoAir Purification Technology Co.,Ltd. is going to be top notch in terms of its hepa filter manufacturers and considerate service. - Guangzhou HaoAir Purification Technology Co.,Ltd. plays an nationwide leading role in hepa air filter production.
2. Updating the equipment to manufacture custom hepa filter can make HAOAIRTECH to win more customers. - Guangzhou HaoAir Purification Technology Co.,Ltd.'s technical personnel all have rich experience in the field - Guangzhou HaoAir Purification Technology Co.,Ltd. continuously innovates R&D technology.
3. It is the lifelong pursuit of every HAOAIRTECH person to build the company into the No. 1 air filter hepa brand. Call now! - The HAOAIRTECH brand is also designed to get higher recommendations from customers. Call now! - HaoAir Purification will keep following the purpose of 'Think for customers, supply high quality products'. Call now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
