We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
MODEL | HA-AS2300P2 | HA-AS2300P3 | |||
External size (mm) | 2300x2000x2280mm | 2300x3000x2280mm | |||
Work zone (mm) | 1500x2000x1980mm | 1500x3000x1980mm | |||
Persons per cycle | One Small Cargo forklift. | One big Cargo forklift. | |||
Material (Option) | 1:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | ||||
Control system | 1: Control system with LED display for the shower time. | ||||
Door | Automatic High Speed Rolling Door | ||||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |||
Air flow of fan(m3/h) | 1500 | 1500 | |||
Fan run (r/min) | 2800 | 2800 | |||
Nozzle in stain less steel | 36 pcs | 54 pcs | |||
Wind speed(m/s) | >25m/s | ||||
Noise level(dB) | <75dB | ||||
HEPA FILTER | Size(mm) | 630X630X80mm(4 sets) | 630X630X80mm(6 sets) | ||
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||||
Air velocity | 1000(m3/h) | ||||
Initial resistance(pa) | <180pa | ||||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 | |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | ||
G3 | G3 | G3 | |||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | ||
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P | |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw |
1: Fast shutter motor 2:Air shower control board 3:SUS Nozzle 4: Infrared Ray Indicator 5A/B:Sensor for door open 6: PVC Rolling Door 7:Big air volume motor 8: HEPA air filter(H13 99.995%@0.3um) 9: per-filter 10A/B: Sensor for door closer 11: Purification Light
widely used in food, chemistry, textile, electronics, supermarkets, refrigeration, logistics, warehousing and many other places.

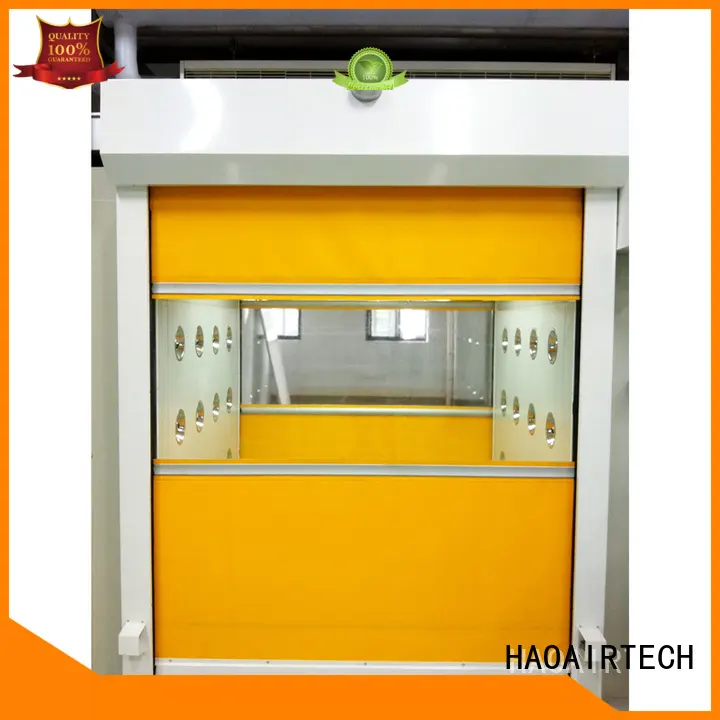

The application of the fast rolling curtain door in the cargo shower room:
The high speed rolling shutter door that is runs faster than 0.6 meters per second.
It is a fast lifting and barrier free isolation door. The most important performance is fast isolation so as to ensure the clean quality of workshop air quality. It has many Characteristic such as heat preservation, cold keeping, insect protection, windproof, dustproof, sound insulation, fire prevention, odor prevention, day lighting and so on .
High performance of logistics and air clean purification places, and save energy, high speed automatic closure, improve work efficiency, create a better environment and other advantages.
Because of the above advantages of the fast rolling shutter door already use for cargo air shower ,the curtain door has been applied to the top of the shower room.
By using it, it is very suitable for the demand of the shower room operation. The use of the staff is very convenient, the security and the stability of the operation are very good.
/ Certificated:
1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Full Stainless Steel 304 Air Shower Room
Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods. Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.
Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5,20m/s air velocity can up to 20m/s. professional and fast design, non-standard products.
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Technical Parameters:
♦Single Person Air Shower
♦Double Person Air Shower
♦Stainless steel nozzles, infrared sensor blowing automatically
