HAOAIRTECH air shower price with automatic swing door for pallet cargo

Company Advantages
1. HAOAIRTECH air showers and pass thrus is designed by top designers and independent R&D teams. The product is reputed for its long service life
2. The product is widely used for various purposes and has a great market potential. The product can increase the rate of finished products
3. The quality of this product has been recognized by many international certifications. Automatic operation is the highlight of the product
4. With our consistent focus on industry quality norms, the product is quality-assured. A sample of the product can be offered for the confirmation of quality
5. Our rigorous quality control processes ensure that our products are of good quality. The product creates a clean environment to reduce allergy and asthma symptoms

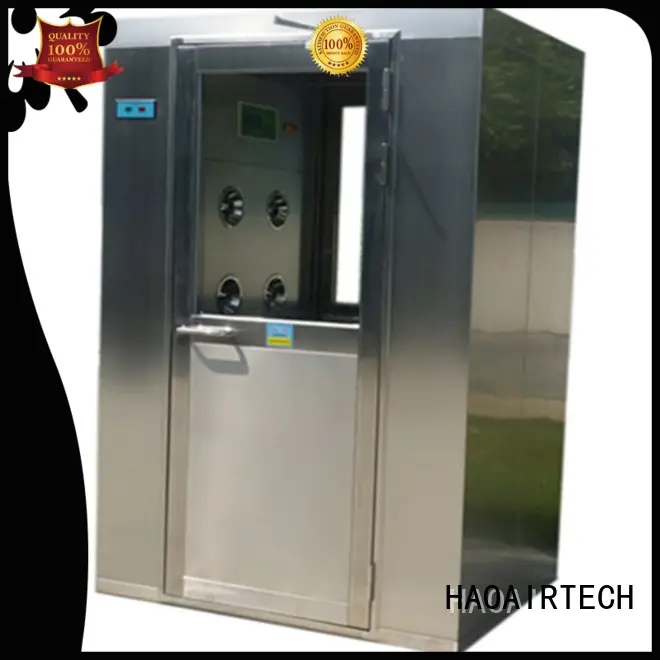

 SUS304 Cleanroom Air Shower

 1: Direct drive non-overloading paddle wheel blower

 2: Open drip proof motor

 3; Neoprene vibration isolators for blower

 4: 99.99% @ .3 micron HEPA filter

 5：White plastic adjustable air nozzles that deliver a minimum 5000 f.p.m. velocity

 6：G3 pre-filters located at the bottom of the wall for easy access

 7：Magnetic door interlocks 24DV with 600 pound holding force

 8：Emergency stop station (shuts off blower and turns off locks)

 9： Clear anodized aluminum frame doors with 1/4" clear tempered glass vision panel

 10：Commercial duty door closers

 11：Clear anodized door stops with seals

 12：Drag sweep for bottom door seal

 13：LED light fixture

 14：Pre-wire control panel with non-fused disconnect switch, transformers, motor starter with

       short circuit and overload protection and fuses and/or circuit breaker.

 15：Available in straight, right angle, left, angle, u-shape and z-shape configurations

Cleanroom Air Shower Parameter :

SUS304 Cleanroom Air Shower
Model	HA-AS-1300/P1	HA-AS-1300/P1.5	HA-AS-1300/P2
Exterior   Size LxWxH   (mm)	1300x1000x2100	1300x1500x2100	1300x2000x2100
Interior   Size LxWxH   (mm)	800x930x1960	800x1430x1960	800x1930x1960
Users	1	2	2-3
Material	Available   in 100% SUS304 Stainless Steel and/or   High-Quality 1.2 mm Cold-Rolled Steel Plate
Air   Shower Time	0-99   seconds
Jet   Nozzles	12	18	24
Nozzle   Diameter	30 mm
Air   Velocity	> 25   m/s
Door   Closer	Dorma   (German) Door Closer
Electronic   Lock	LCJ   Electronic Lock
Filter   Efficacy	≥99.995%   of Particles ≥0.3μm
Filter   Size  LxWxH   (mm)	595   ×595×80	595   ×595×80	595   ×595×80
No. of   Filters	2	2	4
Power   Source	380V/50Hz   (Also Available in 220V and 110V)
Lighting	1   Recessed LED	2   Recessed LED	2   Recessed LED
Fan   Power (# x Kw)	2 x 0.55	2 x 0.75	4 x 0.55
Weight   (kg)	350	450	600

Application :

  Our Shipment :

Company Features
1. Our company has won many awards. To win these awards, our company was measured on test calls to assess the quality of service, effective processing, clarity of communication and market knowledge.
2. We have defined our commitment to doing business in an environmentally responsible manner. We have invested in processes, systems, and training to meet our objective of maintaining environmental results.
