We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

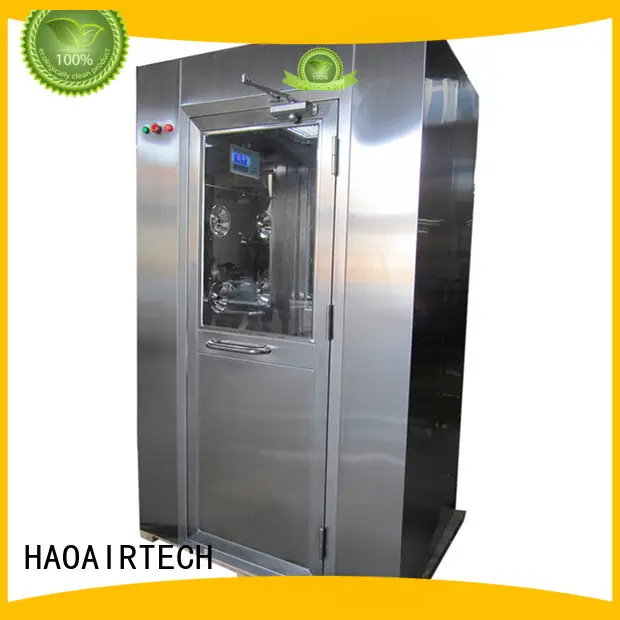

goods air shower system with top side air flow for pallet cargo
1. The manufacturing process of HAOAIRTECH air shower china includes profiles extruding, cutting, CNC machining, deburring, and surface treating. All of these procedures have to be inspected by the QC team to meet the highest requirements in the heat sink industry.
2. The product is highly durable. It is made of an aluminum frame with excellent durability and rigidity in a wide range of challenging applications.
3. The demand for products continues to increase, and the market prospects for products are promising.
Product Features:
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
Cleanroom Air Shower Draw :
Schneider brand E-STOP button for Cleanroom Air Shower :
Products Parameter:
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(M3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(M3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | a960kgs | |
Application :
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Company Features
1. HAOAIRTECH has gradually gained its popularity in air shower system industry.
2. The combination of traditional and modern technology makes superior quality of air shower room .
3. We adopt and implement sound environmental management systems and pollution control measures. We will avoid and reduce environmental pollution in our daily production practices. We set high standards of performance and ethical behaviors. We are judged by how we act and how we live up to our core values of honesty, integrity, and respect for people. Inquire now! HAOAIRTECH brands are popular around the world. We minimize the negative impact of our production activities and promote both recovery and environmental-protection projects. We are developing new technologies in order to avoid unnecessary resource consumption.
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
