flat panel filter with aluminum frame online
1. HAOAIRTECH panel filter has passed multiple tests. They are mainly tests for breathability, abrasion resistance, temperature resistance, bending, and anti-slip performance. The product comes with 1-2 years of warranty period
2. People can trust that the product is able to offer a solid barrier against intruders, enhancing the security level for the buildings. The product will greatly improve the quality of factory-made products
3. This product features dimensional stability. It has been checked in terms of torque, stretch & recovery, and shrinkage and performs well in all these aspects. Automatic operation is the highlight of the product
4. The bacteria are not easy to build upon its surface. Its materials have been specially treated to have long-term antibacterial properties that reduce the chance of bacterial growth. It has low noise and high mobility

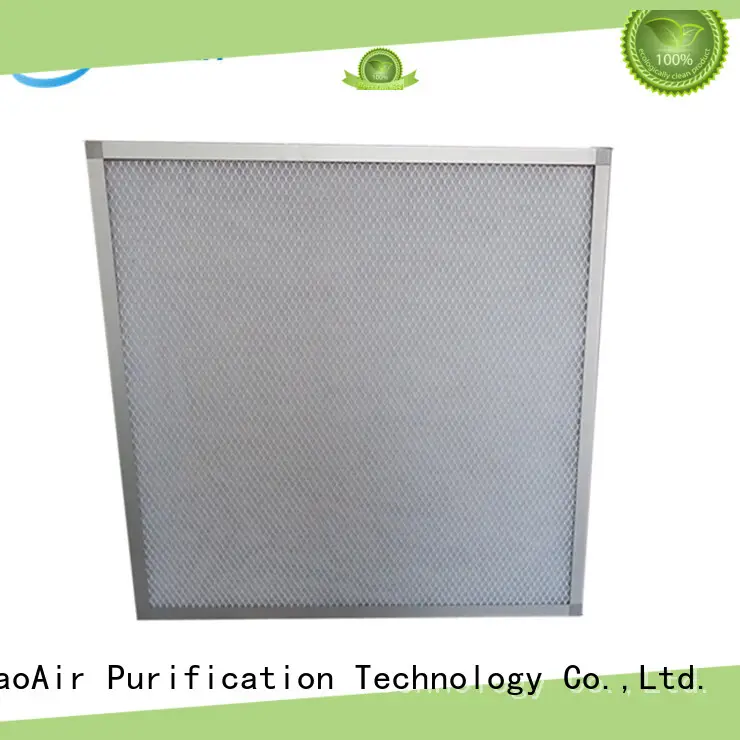

This kind of panel air filter used for catch large particles of dust and various suspended solids over 2um.
The flat type panel air filter has the advantages of cleaning, simple replacement of filter material, high product strength, large air volume, low resistance and high dust containing storage.
Media | Synthetic fibre |
Frame | AL frame |
Gasket | / |
screen | metal screen in both side |
Frame thickness (mm) | 10/17 |
Efficiency | G1,G2,G3,G4 |
Humidity | 100% |
Max Temperature | 80℃ |
Dimension | Rate air flow | Media area | Dust Holding(g) | Initial Resistance (pa) | Finally Resistance (pa) | Efficiency |
592x592x10 | 2500 | 0.37 | 50 | <30 | 100-200 | G2 |
60 | <40 | 100-200 | G3 | |||
75 | <45 | 150-200 | G4 | |||
592x287x10 | 1200 | 0.19 | 25 | <30 | 100-200 | G2 |
30 | <40 | 100-200 | G3 | |||
40 | <45 | 150-200 | G4 | |||
592x592x21 | 2500 | 0.37 | 40 | <30 | 100-200 | G2 |
75 | <40 | 100-200 | G3 | |||
95 | <45 | 150-200 | G4 | |||
592x287x21 | 1200 | 0.19 | 20 | <30 | 100-200 | G2 |
40 | <40 | 100-200 | G3 | |||
50 | <45 | 150-200 | G4 |
Customer size is available
It is used in ventilation and air conditioning systems of office buildings, conference rooms, hospitals, gymnasiums, airports and other large civil buildings, and centralized ventilation systems per
filtration of industrial buildings. large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device and so on.
