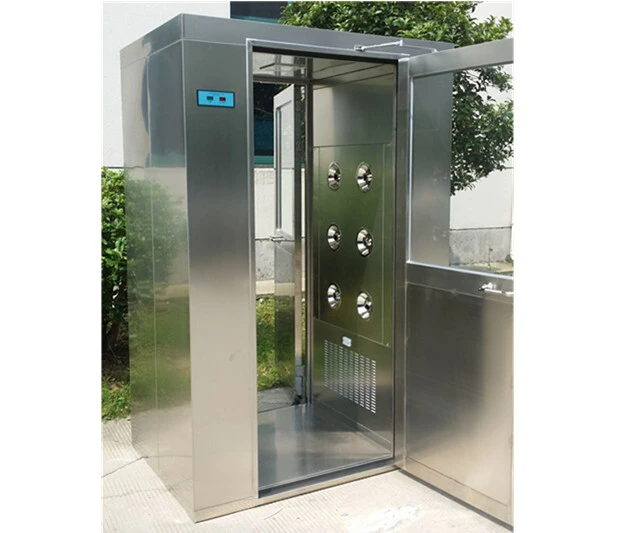

Explosion-Proof Air Showers
Explosion-Proof Air Showers
Product Features：
Air shower electric control system is explosion-proof
Big air blowing fan is explosion-proof
Purification light is explosion –Proof
External Material: stainless steel304 (t=1.0) or steel with power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1600*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Introduce:
Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries.
As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.
Products Parameter：
MODEL | HA-AS1600P1 | HA-AS1600P2 | HA-AS1600P3 | |
External size (mm) (W*D*H) | 1600x1000x2180mm | 1600x2000x2180mm | 1600x3000x2180mm | |
Work zone (mm) (W*D*H) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) 2:Entirety sus201. (T=1.0/1.2/1.5mm) 3:External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 4:External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: The Air shower electric control system ,big blowing fan and purification light is explosion –Proof 6: with CE remark. | |||
The power of fan | 380V/50HZ/0.75KW (2 set) | 380V/50HZ/0.75KW (4 sets) | 380V/50HZ/0.75KW (6sets) | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm (2 sets) | 630X630X80mm (4 sets) | 630X630X80mm (6 sets) |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1750x1200x2250mm | 1750x2200x2250mm | 1750x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Explosion -Proof Light :
Explostion -Proof Fan:
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
