We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

efficiency auto air shower fastrolling plc HAOAIRTECH company 1
efficiency auto air shower fastrolling plc HAOAIRTECH company 2
efficiency auto air shower fastrolling plc HAOAIRTECH company 3
efficiency auto air shower fastrolling plc HAOAIRTECH company 4
efficiency auto air shower fastrolling plc HAOAIRTECH company 5
efficiency auto air shower fastrolling plc HAOAIRTECH company 6
efficiency auto air shower fastrolling plc HAOAIRTECH company 7
efficiency auto air shower fastrolling plc HAOAIRTECH company 8
efficiency auto air shower fastrolling plc HAOAIRTECH company 9
efficiency auto air shower fastrolling plc HAOAIRTECH company 1
efficiency auto air shower fastrolling plc HAOAIRTECH company 2
efficiency auto air shower fastrolling plc HAOAIRTECH company 3
efficiency auto air shower fastrolling plc HAOAIRTECH company 4
efficiency auto air shower fastrolling plc HAOAIRTECH company 5
efficiency auto air shower fastrolling plc HAOAIRTECH company 6
efficiency auto air shower fastrolling plc HAOAIRTECH company 7
efficiency auto air shower fastrolling plc HAOAIRTECH company 8
efficiency auto air shower fastrolling plc HAOAIRTECH company 9

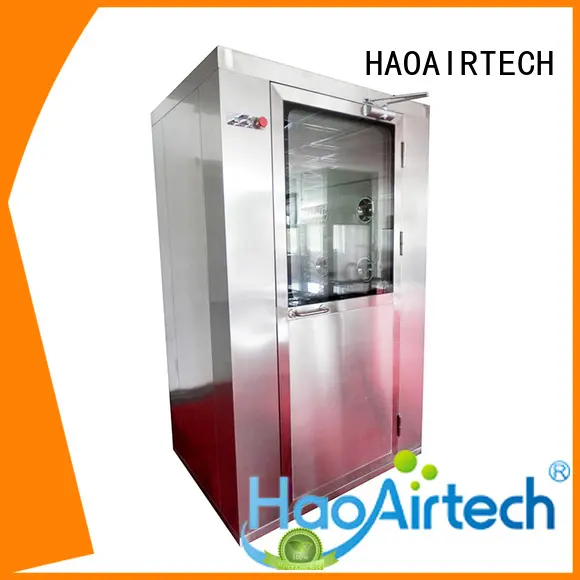

efficiency auto air shower fastrolling plc HAOAIRTECH company

Brand:
HAOAIRTECH
Model number:
HA-AS1600P1 Series
Material:
inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE and Rosh
Start port:
Guangzhou
Delivery time:
10 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. The product can be used to save time for cleaning and vacuuming. shower room is provided in various shapes, sizes as well as interesting designs and color combinations.
2. It is certified by SGS corporation and reaches RoHS standard. air shower,air shower unit have been equipped completely.
3. The product can maintain high air quality of the factory. Experiment indicates that air shower room,air shower tunnel is air shower specification,which could serve as an ideal cleanroom products.
4. The product creates a high cleanliness working environment. HAOAIRTECH offer air shower clean room,portable clean room with chic styles which meets different needs.



Product Features
Air shower electric control system is explosion-proof
Big air blowing fan is explosion-proof
Purification light is explosion –Proof
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1600*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
efficiency auto air shower fastrolling plc HAOAIRTECH company 10


/ Products Parameter


MODEL

  HA-AS1600P1

HA-AS1600P2

HA-AS1600P3

External size (mm)
     (W*D*H)

1600x1000x2180mm

1600x2000x2180mm

1600x3000x2180mm

Work zone (mm)
     (W*D*H)

800x930x1910mm

800x1930x1910mm

800x2930x1910mm

Persons per cycle

 1-2 person

2-4 person

3-6 person

Material (Option)

1:Entirety Sus304.(T=1.0/1.2/1.5mm)
2:Entirety sus201. (T=1.0/1.2/1.5mm)
3:External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
4:External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)

Control system

1: Control system with LED display for    the shower time.
2: The shower time from 0-99second.    (Adjustable)
3: Infrared ray inductor for inside    personal shower automatic.
4: Three side blowing with Human voice    prompt system.
5: The Air shower electric control system    ,big blowing fan and purification light is explosion –Proof
6: with CE remark.

The power of fan

380V/50HZ/0.75KW
     (2    set)

380V/50HZ/0.75KW
     (4 sets)

380V/50HZ/0.75KW
     (6sets)

Air flow of fan(m3/h)

        1500

 1500

1500

Fan run (r/min)

2800

2800

2800

Nozzle in stain less steel

        16 pcs

32 pcs

48pcs

Wind speed(m/s)

                        >25m/s

Noise level(dB)

              <75dB

HEPA FILTER

Size(mm)

 630X630X80mm
     (2 sets)

630X630X80mm
     (4 sets)

630X630X80mm
     (6 sets)

Efficiency (%)

99.995% @ 0.3um mini-pleats HEPA Air Filter

Air velocity

1000(m3/h)

Initial resistance(pa)

<180pa

Pre-filter

Size(mm)

     775x380x17

775x380x17

775x380x17

Efficiency (%)

 75% @ 0.5um

75% @ 0.5um

75% @ 0.5um

   G3

    G3

G3

resistance(pa)

<30 Pa

<30Pa

<30 Pa

parameter

Power supply

 380v/50HZ 3P

380v/50HZ 3P

380v/50HZ 3P

 Net power(kw)

        1.5 kw

    3kw

   4.5    kw

packing size    (mm)

1750x1200x2250mm

1750x2200x2250mm

1750x3200x2250mm

Packing    material

Standard Export Poly wood Packing(Fumigant free material)

Weigh

320kgs

     650kgs

960kgs



/ Specification


Illustrate

1: Explosion– Proof Control Board    2: SUS Nozzle    3: Infrared Indicator   4: Per-filter    5: Power indicator     6: Emergency switch    7: Working light    8: HEPA air filter (H13 99.995%@0.3um)    9: Interlock Door,    10: Explosion –Proof Big air blower   11: Door Closer   12: Explosion–Proof purification light


efficiency auto air shower fastrolling plc HAOAIRTECH company 11



/ Product Details



part.1
Explosion –Proof Electric Control Box
efficiency auto air shower fastrolling plc HAOAIRTECH company 12

part.2
Explosion –Proof purification light

part.3
Explosion –Proof Big Air Blower

part.4
Air Speed Test


Introduce:

Explosion-proof air shower rooms are widely used in enterprises that require high purification produce flammable and explosive materials, such as refineries, cutting-edge weapons producers, military enterprises, and aerospace industries. As used in the explosive industry and the use of volatile goods, enterprises must take into account the product features and safety of the customer workshop in the design of explosion-proof air shower rooms. All parts of the explosion-proof air shower room are all used with explosion-proof electrical appliances and lines to avoid the explosion of combustible gas and equipment in the customer's workshop.



/ Certificated

/ Our Service


Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .




Company Features
1. Currently Guangzhou HaoAir Purification Technology Co.,Ltd. is seen as the best in air shower field with shower room. - air shower room is fused with technology of air shower unit.
2. The strength of Guangzhou HaoAir Purification Technology Co.,Ltd. is almost incomparable in air shower clean room field with advanced production equipment.
3. air shower manufacturer is accessible easily for ensuring convenient communication between customers. - If You Are Interested In Our High-Quality Products And Related Service, Pls Contact Us, Tailor-Made air shower price, air shower tunnel Is Also Acceptable In Guangzhou HaoAir Purification Technology Co.,Ltd., We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit, Please Do Not Hesitate To Contact Us For More Information, Please Contact Us!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
