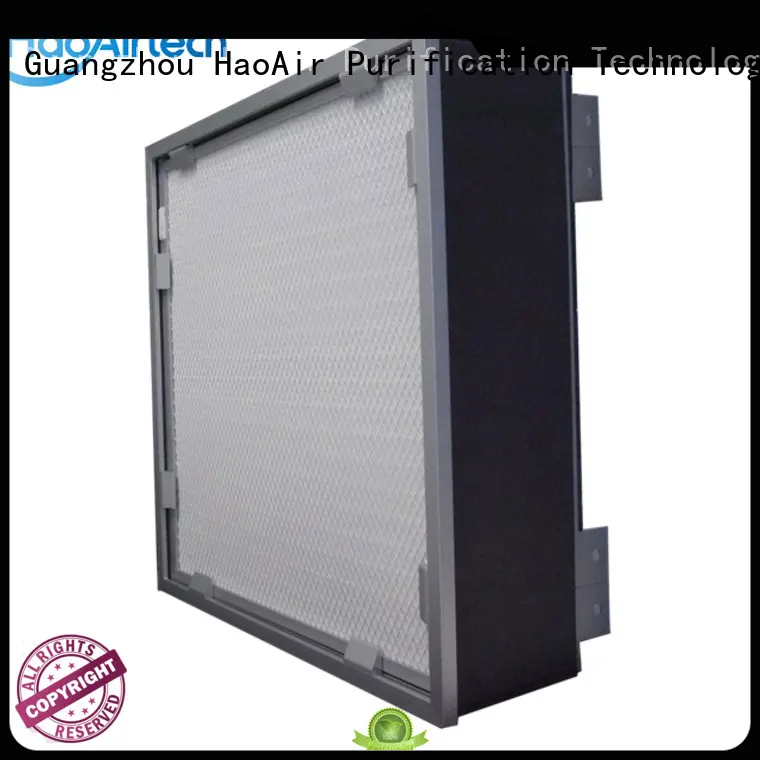

Ducted Ceiling HEPA Module

Company Advantages
1. HAOAIRTECH High efficiency hepa air filter is manufactured through strict material selection procedures.
2. This product is warranted to be free from defects in quality and performance with normal manufacturing tolerances and quality control procedures.
3. People praised that it provides stability to their feet. It is able to endure many challenges, such as terrain, body weight, and all other pressures that happen during walking.

   Ducted Ceiling HEPA Module

    Characteristics:

The ducted ceiling HEPA Moudle cabinet are designed in closed integration which prevent the air leakage.

Meanwhile the heap filter replaceable from cleanroom inside.

This filter light weight and easy maintain

Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose

Control valve for air flow adjust (optional).

The media material is super glass fibre for 0.3um particulate.

100 % provide the test report for each mini-pleats HEPA air filter

Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um

ducted ceiling HEPA Moudle Operating Conditions:

Media	Super glass fibre
Frame	AL/GL frame
Gasket	Neoprene /EVA
Media Spacer	Hot melt
Cabinet Thickness (Mm)	150/180mm
Filter Frame	69mm
Efficiency	99.99%-99.999%@0.3um
Max Temperature	70℃
Max Humidity	100%

Products Parameter：

Cabinet size (mm) (W*H*D)	Filter size (mm) (W*H*D)	Rate Air Flow (m3/h)	Media Area (m2)	Dust  Holding (g)	Rate primary Resistance (Pa)	Finally Resistance  (Pa)	Efficiency
360X360X180	320x320x69	264	2.93	126	<220pa	400-600pa	H13-H14
524X524X180	484x484x69	600	6.61	397
650X650X180	610x610x69	1000	10.44	627
670X670X180	630x630x69	1050	11.13	668
650X955X180	610x915x69	1500	15.42	925
650x1260x180	610x1220x69	2000	20.40	1224
670x1300x180	630x1260x69	2100	21.76	1306
345x345x180	305x305x69	240	2.66	160
345x650x180	305x610x69	500	5.09	305
345x955x180	305x915x69	750	7.52	450
640x640x180	600x600x69	980	10.11	607
640x1240x180	600x1200x69	1980	19.74	1185
650x1280x180	610x1240x69	2050	20.74	1244
524x1008x180	484x968x69	1250	12.85	771

Application:

The replaceable HEPA air filter with hood suitable for high and strict working environment such

as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system



   Warranty:



  Our equipment is warranty for 1 year excluding consumable parts and accessories.

  All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

  Additional IO/OQ/GMP document is available upon request.

 Contact our sales representative for specific warranty details or document request.





  Consumable parts illustration:



  1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



  2: HEPA filter: each one should be replacement in each half and one years.
