We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

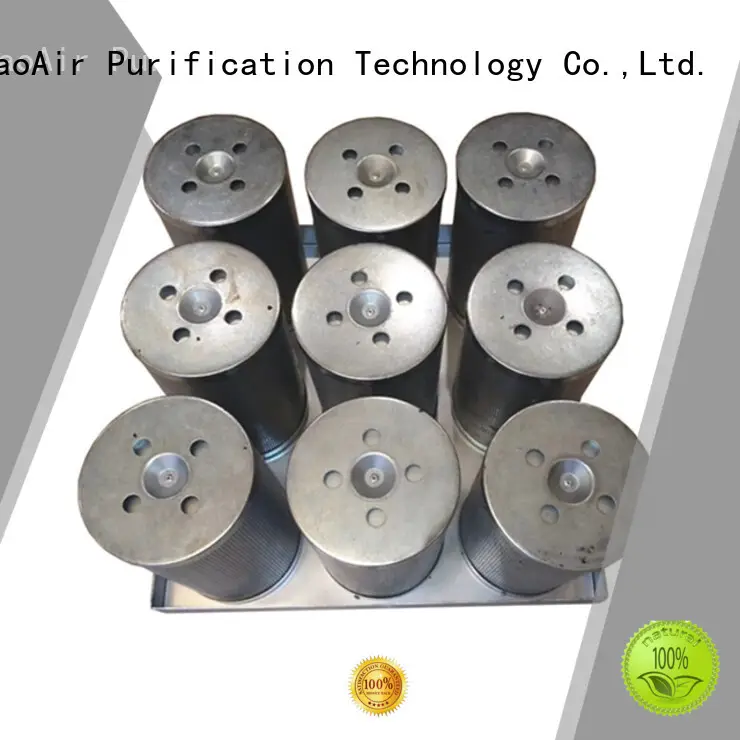

chemical filtration pleats chemical filter HAOAIRTECH Brand
1. The product can increase the rate of finished products. Thanks to the unique design of chemical filtration, we are proud to present HAOAIRTECH products to customers all over the world. The product can increase the rate of finished products
2. The product is reputed for its long service life. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. A sample of the product can be offered for the confirmation of quality. Possessing the characteristics of cartridge filter, chemical filter,v bank filter can be very applicable in many places.
1. Filtration efficiency: 99.5%. Dust of transmittance is only 0.1% - 0.3%.
2. Structure reasonable compact, can be installed on any position, not restricted by vehicle parts layout.
3. Maintenance does not consume fuel, can save a lot of materials such as cotton, felt and metal materials.
4. High quality and low cost.
| Frame | Size | NO of Hole | Material |
| F1 | 610X610X70 | 16 | GL |
| F2 | 610X305X70 | 8 | |
| F3 | 305X305X70 | 4 | |
| F4 | 610X610X70 | 16 | SUS201/304 |
| F5 | 610X305X70 | 8 | |
| F6 | 305X305X70 | 4 |
| Cylinder Model | material | |
| C1 | GL | ￠145 X￠87X300 |
| C2 | ￠145 X￠87X450 | |
| C3 | ￠145 X￠87X600 | |
| C4 | SUS | ￠145 X￠87X300 |
| C5 | ￠145 X￠87X450 | |
| C6 | ￠145 X￠87X600 |
| Model | Cylinder Dimensions(mm) | Modular Dimensions | NO of Cylinder | Charcoal Content(g) | Removal Efficecy (%) | Pressure Drop (pa) | Air Flow (m3/h) | ||
| ￠145x330 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-330-16 | 610 | 610 | 403 | 16 | 24 | 135 | 3600 | ||
| HAT-330-12 | 508 | 610 | 12 | 18 | 135 | 2700 | |||
| HAT-330-8 | 305 | 610 | 8 | 12 | 135 | 1800 | |||
| HAT-330-4 | 305 | 305 | 4 | 6 | 135 | 900 | |||
| HAT-450-16 | 610 | 610 | 478 | 16 | 28.8 | 110 | 3600 | ||
| HAT-450-12 | 508 | 610 | 12 | 21.6 | 110 | 2700 | |||
| HAT-450-8 | 305 | 610 | 8 | 14.4 | 110 | 1800 | |||
| HAT-450-4 | 305 | 305 | 4 | 7.2 | 110 | 900 | |||
| ￠145x480 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-480-16 | 610 | 610 | 553 | 16 | 35.2 | 90 | 3600 | ||
| HAT-480-12 | 508 | 610 | 12 | 26.4 | 90 | 2700 | |||
| HAT-480-8 | 305 | 610 | 8 | 17.6 | 90 | 1800 | |||
| HAT-480-4 | 305 | 305 | 4 | 8.8 | 90 | 900 | |||
| ￠145x600 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-600-16 | 610 | 610 | 673 | 16 | 43.2 | 70 | 3600 | ||
| HAT-600-12 | 508 | 610 | 12 | 32.4 | 70 | 2700 | |||
| HAT-600-8 | 305 | 610 | 8 | 21.6 | 70 | 1800 | |||
| HAT-600-4 | 305 | 305 | 4 | 10.8 | 70 | 900 | |||
Customer size is available
Exclusively designed for commercial or industrial central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air.
A variety of special activated charcoal materials can be provided according to the actual needs, such as elimination of acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.
Install Frame: Electrostatic spraying of cold rolled steel or stainless steel.
Carbon tube material: galvanized steel or stainless steel, the metal shell of the carton tube reusable
Mainly used in air filter.Filter dust ,air-condition and sand in the air.
2. Filtrate solid particles,colloidal substances .
3. Effectively control the pollution.
4.Guarantee/insure the system working normally.
5.Can provides framework,combined use according to the treatment amount of gas
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
