capsule softwall modular cleanroom with ffu for sterile food and drug production

Company Advantages
1. HAOAIRTECH modular clean room for sale is reasonably and hygienically designed. To ensure a clean food dehydration process, the parts are properly cleaned before assembly, while the crevices or dead areas are designed with dismantled function for thoroughly cleaning. It is certified by SGS corporation and reaches RoHS standard
2. HaoAir Purification possesses whole distributing net and supplying resource. With the shell galvanized, the product is crack-resistant and wear-resistant
3. Our strict quality control throughout the whole production process greatly guarantees the quality of the product. Automatic operation is the highlight of the product
4. The product has better durability due to its quality assurance. The product prevents viruses and bacteria from spreading

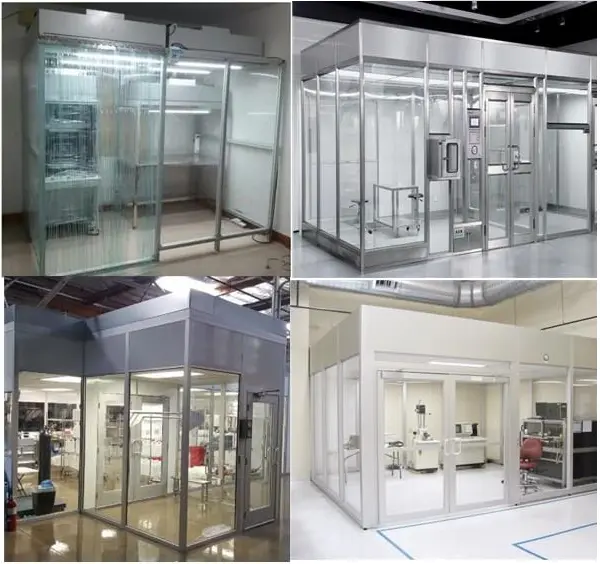

Pharmaceutical Modular Cleanroom

      Pharmaceutical  Modular Cleanrooms is the premier source for modular hardwall cleanrooms, clean room construction and installation in the china. With over 10 years of manufacturing experience, we can provide you with custom clean rooms at your location backed by a flawless installation process that gives you the perfect cleanroom environment. We are the leading company to provide you with turn-key cleanroom solutions, which means we manage your room project from start to finish. We will design and manufacture your cleanroom to your exact specifications at our factory, which means there will be absolutely no construction mess at your locale. We then deliver and install your room at the destination of your choice—nationwide.

       Haoairtech  cleanrooms has been building modular clean rooms and environmental enclosures for over 10 years.

We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) cleanrooms that are used for some of the following activities: environmental test chambers, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, stem cell research laboratories, server control rooms, organic chemistry laboratories, laser rooms, microbiology laboratories, dry rooms and more.

           We offer a complete turnkey solution that begins with building to your exact specifications and seeing your project through until completion. Our non-invasive modular construction process involves the manufacturing

    of your clean room in a factory, resulting in short lead times and a minimal amount of on-site construction contamination. Our modular clean rooms are reusable, reconfigurable and environmentally friendly which

     will minimize your carbon footprint.

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is one of the most widely recognized manufacturers of modular clean room for sale . We have splendid experience in product fabricating and processing. Our factory has multiple production lines that use equipment imported from overseas to increase quality while maintaining a high level of monthly and annual production.
2. In order to meet the company's product development needs, the professional R&D base has become a powerful technical support force for Guangzhou HaoAir Purification Technology Co.,Ltd..
3. Our CEO is responsible for the strategic development of our business. He/She continues to expand the development and production of products and improve manufacturing services through the penetration of new markets. Exploring the value of modular cleanroom with full gratitude and reverence is of great importance for HAOAIRTECH at present. Ask!
