capsule softwall clean room classification with antistatic vinyl curtain for sterile food and drug production

Company Advantages
1. Advanced technology and latest machines & equipment are used to manufacture HAOAIRTECH clean room classification in accordance with the international production standards.
2. By integrating softwall clean room price and clean rooms specifications and design , Guangzhou HaoAir Purification Technology Co.,Ltd. is able to produce finest clean room classification .
3. If you can trust in us, Guangzhou HaoAir Purification Technology Co.,Ltd. will never let you down for the quality of clean room classification .
4. HAOAIRTECH's factory has advanced production management experience and sound quality control system.

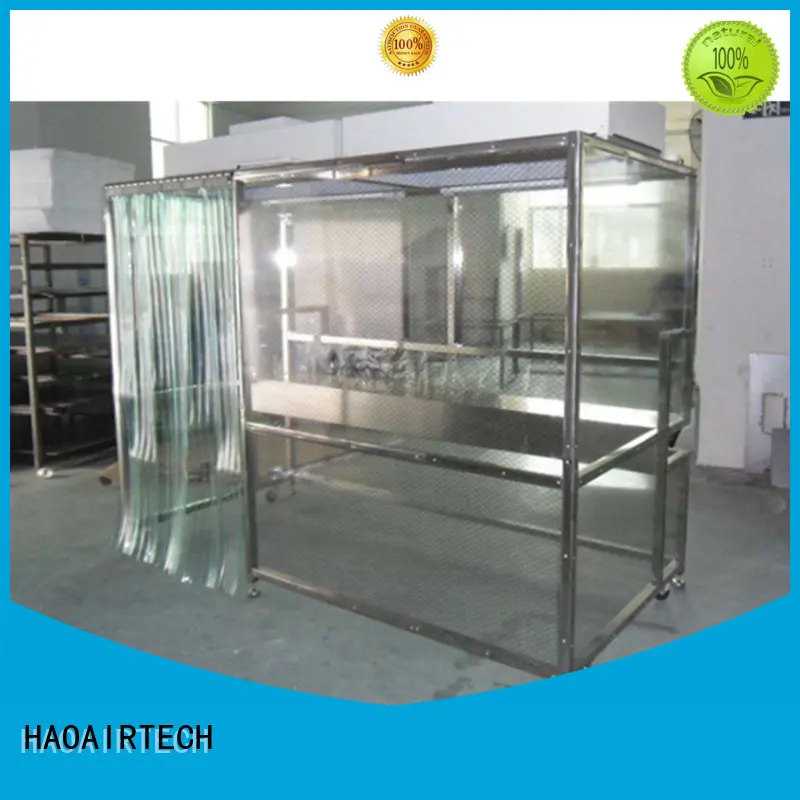

SUS 304 Frame Softwall Clean Room

Introduction

 1. With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.

2. Easy installation, low cost, modularized design and easy upgrading

 Application

LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy, Packing,Food

Main Features

(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Display :

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an approved manufacturer of softwall clean room price both in the domestic and international market. We have earned a good reputation over the years.
2. A considerable manufacturing capacity is formed by Guangzhou HaoAir Purification Technology Co.,Ltd..
3. We never stop improving customer satisfaction. We will always put the principles of customer first and quality first into practice. Customer satisfaction is of paramount importance in our company. We will not compromise the quality of our products and services. Ask online! We bear social responsibilities. We live up to our responsibility towards the environment and society through each and every one of our products.
