big volume chemical filter phase carbon HAOAIRTECH company
1. The product is of high purification rank. HAOAIRTECH product range is manufactured using supreme grade factor inputs under the strict supervision of HAOAIRTECH quality experts.
2. The product passes the verification of international quality inspection standards. The product creates a high cleanliness working environment
3. Guangzhou HaoAir Purification Technology Co.,Ltd. possesses strong local resource advantages. A sample of the product can be offered for the confirmation of quality
1. Filtration efficiency: 99.5%. Dust of transmittance is only 0.1% - 0.3%.
2. Structure reasonable compact, can be installed on any position, not restricted by vehicle parts layout.
3. Maintenance does not consume fuel, can save a lot of materials such as cotton, felt and metal materials.
4. High quality and low cost.

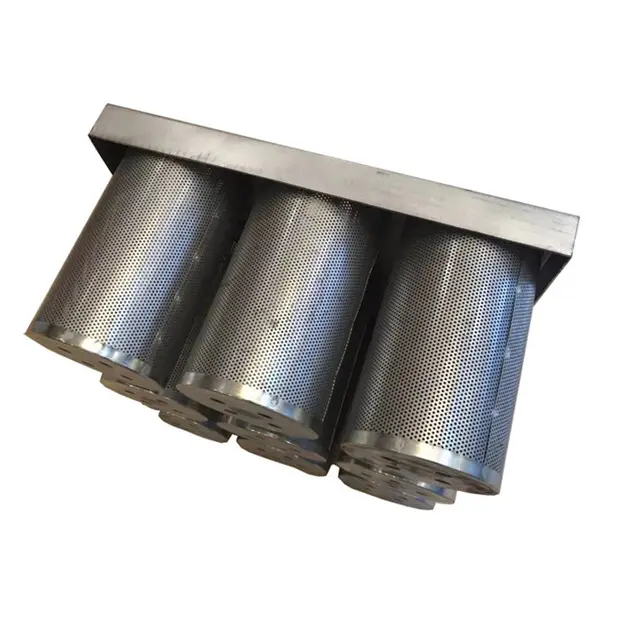

| Frame | Size | NO of Hole | Material |
| F1 | 610X610X70 | 16 | GL |
| F2 | 610X305X70 | 8 | |
| F3 | 305X305X70 | 4 | |
| F4 | 610X610X70 | 16 | SUS201/304 |
| F5 | 610X305X70 | 8 | |
| F6 | 305X305X70 | 4 |

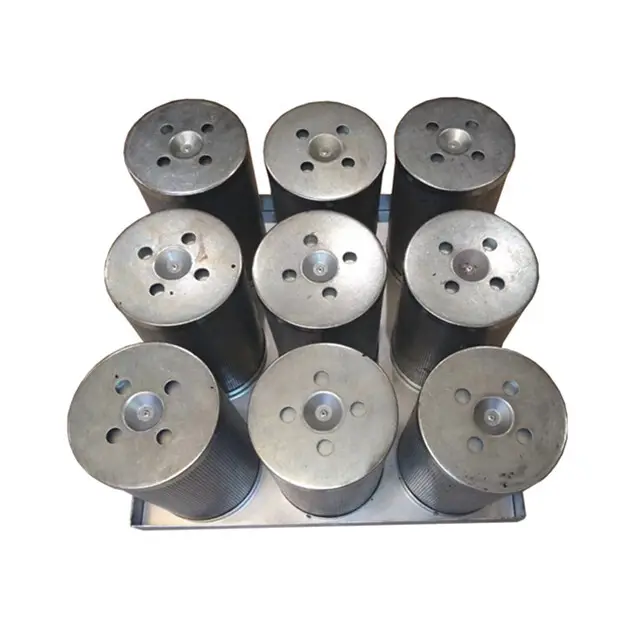

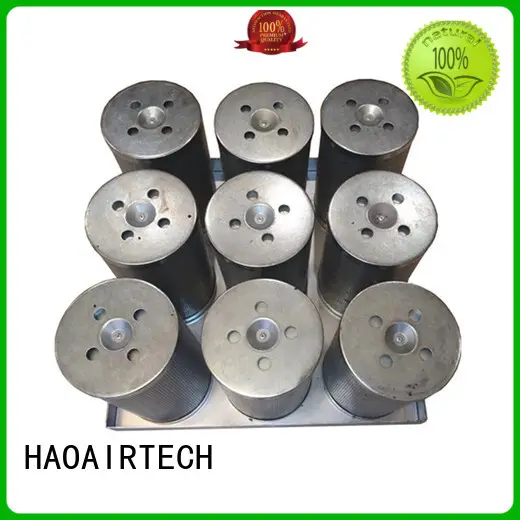

| Cylinder Model | material | |
| C1 | GL | ￠145 X￠87X300 |
| C2 | ￠145 X￠87X450 | |
| C3 | ￠145 X￠87X600 | |
| C4 | SUS | ￠145 X￠87X300 |
| C5 | ￠145 X￠87X450 | |
| C6 | ￠145 X￠87X600 |
| Model | Cylinder Dimensions(mm) | Modular Dimensions | NO of Cylinder | Charcoal Content(g) | Removal Efficecy (%) | Pressure Drop (pa) | Air Flow (m3/h) | ||
| ￠145x330 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-330-16 | 610 | 610 | 403 | 16 | 24 | 135 | 3600 | ||
| HAT-330-12 | 508 | 610 | 12 | 18 | 135 | 2700 | |||
| HAT-330-8 | 305 | 610 | 8 | 12 | 135 | 1800 | |||
| HAT-330-4 | 305 | 305 | 4 | 6 | 135 | 900 | |||
| HAT-450-16 | 610 | 610 | 478 | 16 | 28.8 | 110 | 3600 | ||
| HAT-450-12 | 508 | 610 | 12 | 21.6 | 110 | 2700 | |||
| HAT-450-8 | 305 | 610 | 8 | 14.4 | 110 | 1800 | |||
| HAT-450-4 | 305 | 305 | 4 | 7.2 | 110 | 900 | |||
| ￠145x480 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-480-16 | 610 | 610 | 553 | 16 | 35.2 | 90 | 3600 | ||
| HAT-480-12 | 508 | 610 | 12 | 26.4 | 90 | 2700 | |||
| HAT-480-8 | 305 | 610 | 8 | 17.6 | 90 | 1800 | |||
| HAT-480-4 | 305 | 305 | 4 | 8.8 | 90 | 900 | |||
| ￠145x600 | W(mm) | H(mm) | D+70(mm) | 95% | |||||
| HAT-600-16 | 610 | 610 | 673 | 16 | 43.2 | 70 | 3600 | ||
| HAT-600-12 | 508 | 610 | 12 | 32.4 | 70 | 2700 | |||
| HAT-600-8 | 305 | 610 | 8 | 21.6 | 70 | 1800 | |||
| HAT-600-4 | 305 | 305 | 4 | 10.8 | 70 | 900 | |||
Customer size is available
Exclusively designed for commercial or industrial central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air.
A variety of special activated charcoal materials can be provided according to the actual needs, such as elimination of acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.
Install Frame: Electrostatic spraying of cold rolled steel or stainless steel.

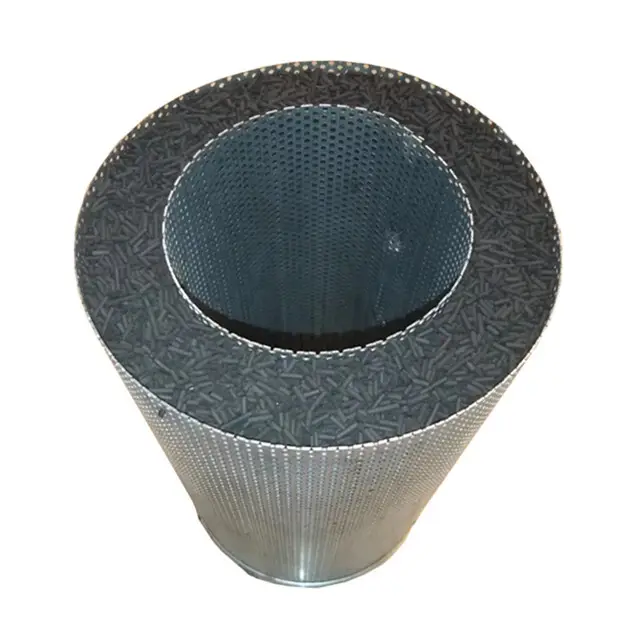

Carbon tube material: galvanized steel or stainless steel, the metal shell of the carton tube reusable
Mainly used in air filter.Filter dust ,air-condition and sand in the air.
2. Filtrate solid particles,colloidal substances .
3. Effectively control the pollution.
4.Guarantee/insure the system working normally.
5.Can provides framework,combined use according to the treatment amount of gas
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
