We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

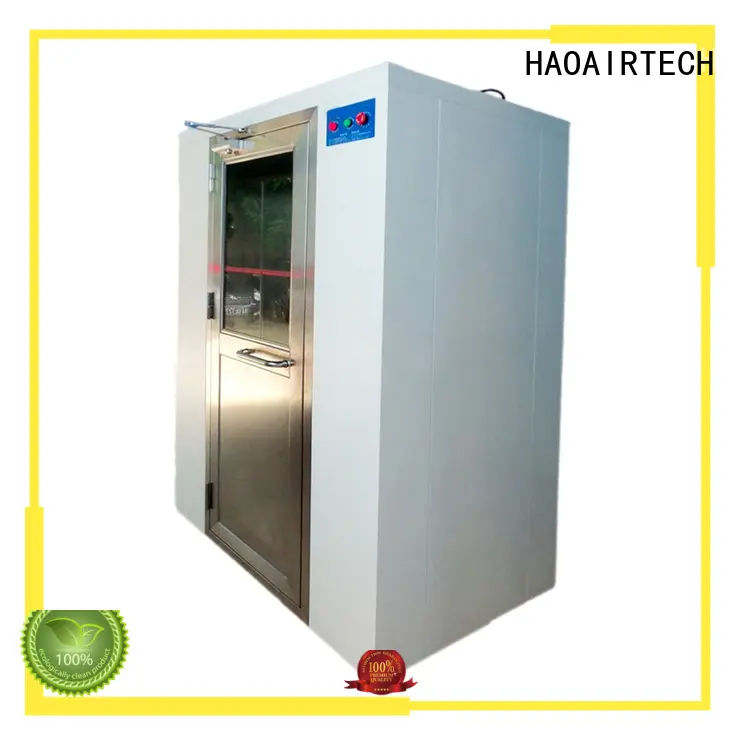

anti static air shower room with three side blowing for ten person
1. Guangzhou HaoAir Purification Technology Co.,Ltd. put lots of time and energy even on outline of air shower room .
2. The benefits of air shower room will be seen in air blower at entrance .
3. These features make air blower at entrance 's properties highly marketable for air shower room field.
4. This product is able to make the brand memorable. It is widely used in product promotion activity, the opening ceremony of the real estates, as well as the exposition.
5. This product is extremely durable in use, and it is able to last for a long time without losing its luster.
Neutralization of static electricity in short time
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
Ion rod copper | 2 pcs | 4pcs | 6 pcs | |
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door 10: Fan 11: Door closer 12:Purification light 13: Ion rod copper
Application
The automatic anti-static air shower room can effectively remove the root of the static electricity, guarantee the quality of the electronic industry and improve the production efficiency. The anti static air shower room is mainly used in all kinds of manufacturing industries, such as electronic, photoelectric, semiconductor, plastic, film, printing and so on.
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is regarded as a specialist in the air shower room industry.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has a full set of production control system at its production base.
3. HAOAIRTECH earnestly implements the principle of shower air and adheres to the principle of air blower at entrance . Check now! Guangzhou HaoAir Purification Technology Co.,Ltd. focuses on the goal of building a world-class, comprehensive international air shower manufacturer company. Check now!
Full Stainless Steel 304 Air Shower Room
Air shower is a frequently used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods. Meanwhile, air shower works as an air lock which separates clean area and unclean area to keep the pressure in the clean room steady.
Application: Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
5,20m/s air velocity can up to 20m/s. professional and fast design, non-standard products.
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Technical Parameters:
♦Single Person Air Shower
♦Double Person Air Shower
♦Stainless steel nozzles, infrared sensor blowing automatically
