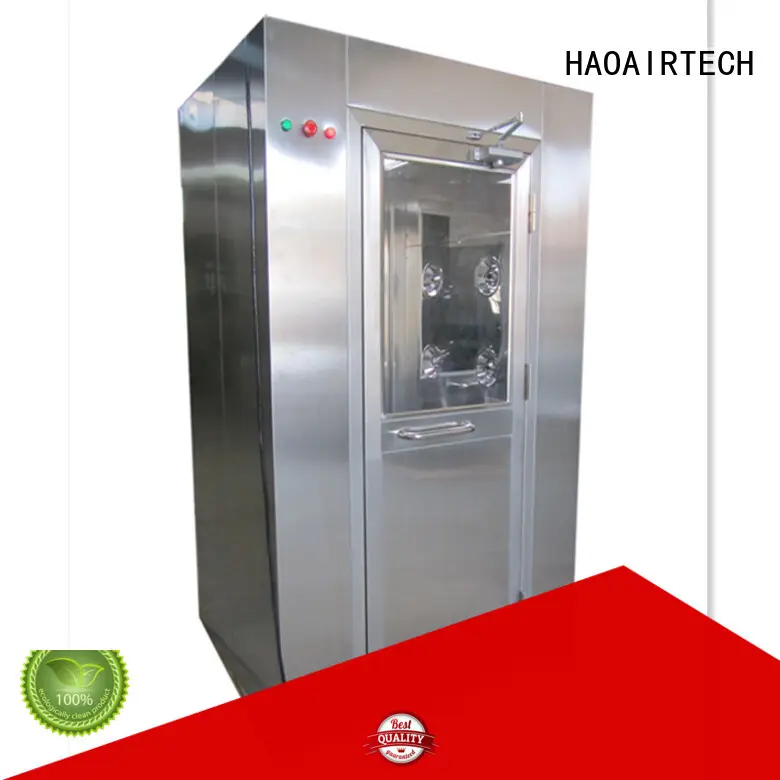

air shower room with top side air flow for oil refinery HAOAIRTECH

Company Advantages
1. In order to ensure long service life, HAOAIRTECH cleanroom products is deliberately investigated during the research and development process in terms of its reliability, efficiency, and heat dissipation capacity. The product creates a clean environment to reduce allergy and asthma symptoms
2. The product provides a good way to reduce the use of energy, which significantly helps save people's energy costs. The product focuses on the good physical conditions of the workers in the workshop
3. The product is built to last. Thanks to its durable construction, it is able to withstand great abuse under harsh environments. With the shell galvanized, the product is crack-resistant and wear-resistant
4. The product can be used for a long time. Its mechanical components are sturdy enough to wear over time and require little maintenance within its service life. The product can be used to save time for cleaning and vacuuming
5. The product has the advantage of stable mechanical properties. Having been treated under extremely cold temperatures, its mechanical components are tensile enough to withstand extreme industrial conditions. The product dedicates to keeping a cleanliness class of 10000-300000

Introduction:
These Air Showers and Tunnels offer an effective way to remove surface-deposited particles from personnel—before they get to the clean room. Each unit is a fully equipped, protected passageway that allows large numbers of personnel to pass into controlled areas without sacrificing convenience or cleanliness.

Pharmaceutical Cleanroom Air Shower Features:

1.HEPA filter/blower modules (rated 99.97% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles.
2.Solid-state microprocessor panel provides programmable control over access door operation.
3.Interlocking doors minimize contamination, release automatically in the event of power failure.
4.Fluorescent lighting is housed in the ceiling for minimal turbulence.
5.Available in white epoxy-finished CR steel, stainless steel, or plastic laminate to meet various clean room requirements.
6.Variety of sizes and door configurations.
7.Economical to operate, easy to maintain.
8.System options include HEPA-filtered ceiling, ionized grid, and safety glazing.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Pharmaceutical Cleanroom Air Shower Specification:

Pharmaceutical Industries Air Shower HA-AS1300P Series
Model		HA-AS1300P1	HA-AS1300P2	HA-AS1300P3
Outer Si(mm) (WXDXH)		1300x1000x2180	1300x2000x2180	1300x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		0.75KWX2 sets	0.75KWX4sets	0.75KWX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		16 pcs	32 pcs	48 pcs
Wind speed(m/s)		25-30m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	630X630X69mm
	Efficiency	99.99%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz



Pharmaceutical Cleanroom:

Pharmaceutical Cleanroom Equipments:

Company Features
1. HAOAIRTECH air shower room are famous for their longer lifespan.
2. Through innovation, new standards for cleanroom products will be created in Guangzhou HaoAir Purification Technology Co.,Ltd.. Please contact us!
