air filter chemical filtration HAOAIRTECH Brand

Company Advantages
1. The product prevents airborne particles and microbes from entrance. We are regarded as the remarkable firm which offers an extensive gamut of chemical filtration.
2. chemical filter features cartridge filter, and can meet the general requirements in v bank filter. With the shell galvanized, the product is crack-resistant and wear-resistant
3. Guangzhou HaoAir Purification Technology Co.,Ltd. has the first-class design level, quality engineering construction management, and good after-sales service support. It is certified by SGS corporation and reaches RoHS standard

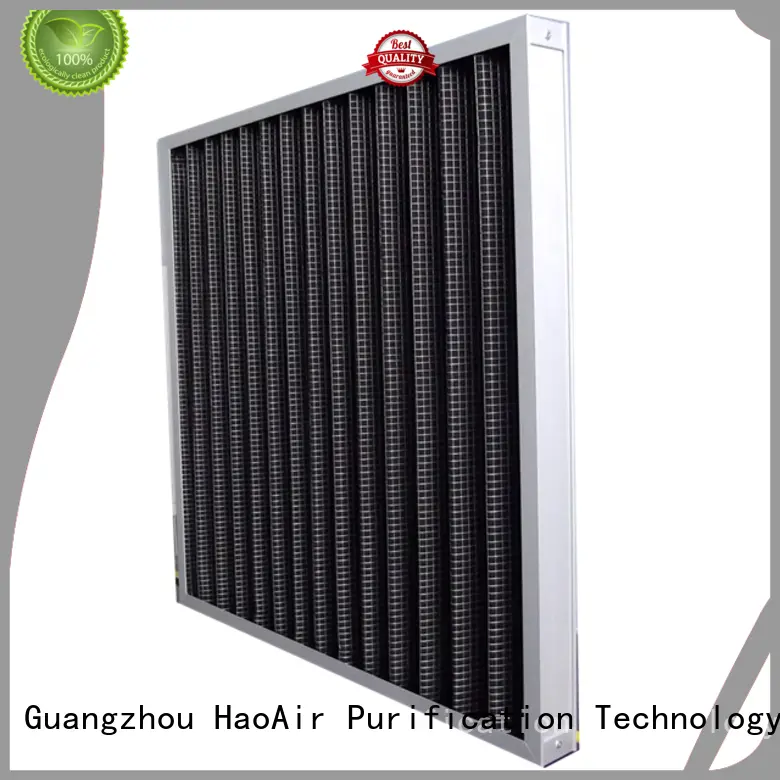

          Pleats activated carbon filter is mainly made of activated carbon cotton as filter media material, with folding shape to increase the filter area, metal wire mesh clamping or built-in metal keel framework support, and metal outer frame. This kind of filter has great adsorption capacity and can effectively remove a large amount of ozone and harmful gases.



          The pleats activated carbon filter media material make the high adsorptive capacity activated carbon raw material impregnated in the hexyl ester foam and bound it into a sheet like adsorbent.

          Due to the porous hexyl ester, so it with gas permeability and the shape stability performance . Because the powder activated carbon contact with the adsorbed substance, so  the contact area is widely and the adsorption speed very fast.  Hexyl formate has the same excellent dust collection effect.





size   (W*H*D)	Rate Air   Flow(m3/h)	Primary   Resistance	Media Area (g)	Odor Removal   Efficiency
592x592x21	1100	40pa	0.9	70%
287x592x21	550	40pa	0.44
490x592x21	950	40pa	0.8
592x592x46	1200	40pa	0.9
287x592x46	600	40pa	0.44
490x592x46	1000	40pa	0.8
592x592x50	1300	40pa	1.06
287x592x50	704	40pa	0.56
490x592x50	1173	40pa	0.93

Equilibrium Adsorption of Poisonous Gases by Folded Activated Carbon Filter (mg/g)

toluene	xylene	formaldehyde	methanol	Ethyl ether	chloroform	acetone	gasoline	ammonia	Hydrogen sulfide	sulfur dioxide	hydrogen chloride
320	290	320	260	470	530	230	290	290	1060	830	450



          1:  It is suitable for industrial ventilation system to remove odors and harmful gases.



    2： Special activated carbon materials such as volatile organic compounds, acidic, alkaline gases, formaldehyde, mercury vapor and radioactive gases can be provided according to actual needs.

Company Features
1. Specialized in the industry of chemical filter, Guangzhou HaoAir Purification Technology Co.,Ltd. is a backbone exporter in China.
2. Moreover, the offered manufactured is strictly tested by our quality experts on a series of parameters ensuring its quality and finish.
3. This comes through in the fact that chemical filtration of our work comes from recommendations and repeat business. Inquire online!
